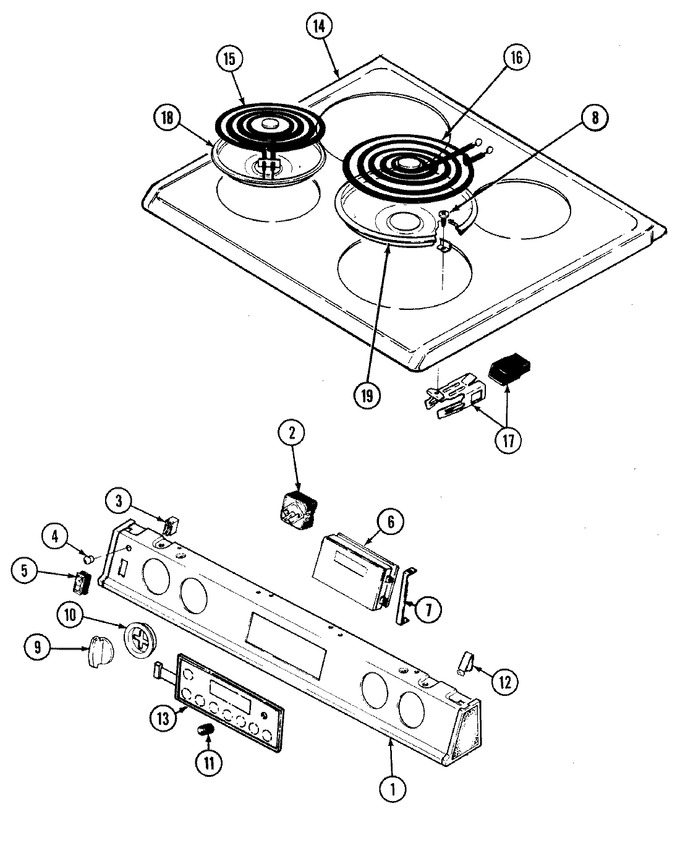

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7722P125-60 | Panel, Control | 07 |
|
- | ||||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 07 |
|
Immediately | $ 35.10 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 07 |
|
Immediately | $ 6.26 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 07 |
|
Immediately | $ 57.78 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 07 |
|
$ 106.11 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 07 |
|
$ 6.73 | ||||
| 5 | 7403P200-60 | Switch, Rocker (wht) | 07 |
|
- | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 07 |
|
$ 6.98 | ||||
| 6 | 7601P207-60 | Clock | 07 |
|
- | ||||
| 7 | 3801F222-45 | Bracket, Clock | 07 |
|
- | ||||
| 8 | WP74004005 | Screw (Replaces: 7118P013-60) | 07 |
|
$ 6.95 | ||||
| 9 | 7731P081-60 | Knob, Switch (wht) | 07 |
|
- | ||||
| 10 | 7740P023-60 | Bezel, Knob (wht) | 07 |
|
- | ||||
| 11 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 07 |
|
$ 12.13 | ||||
| 12 | 7112P087-60 | Clip, Top Locking | 07 |
|
- | ||||
| 13 | 7403P338-60 | Switch, Membrane (wht) | 07 |
|
$ 181.49 | ||||
| 14 | 2002W084-81 | Top, Main | 07 |
|
- | ||||
| 15 | WPW10259868 | Element (6``) (Replaces: Y04000056) | 07 |
|
Immediately | $ 112.28 | |||
| 16 | WP12001560 | Element (8``) (Replaces: Y04000055) | 07 |
|
$ 172.17 | ||||
| 17 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 28.45 | |||
| 18 | WPW10196406 | Bowl, Drip Std. (Replaces: 7725P043-60) | 07 |
|
Immediately | $ 12.05 | |||
| 19 | 8113P060-60 | Manual, Use & Care (frch) | 07 |
|
- | ||||
| 19 | 16000327 | Guide, Quick Ref. - Maytag | 07 |
|
- | ||||
| 19 | 5175D067-60 | Harness | 07 |
|
- | ||||
| 19 | WPW10196405 | Bowl, Drip Giant (Replaces: 7725P042-60) | 07 |
|
Immediately | $ 15.56 | |||
| 19 | 5170D186-60 | Harness, Control Panel | 07 |
|
- | ||||
| 19 | 5170P138-60 | Harness, Sensor/lock | 07 |
|
- | ||||
| 19 | 5170P139-60 | Harness, Relay | 07 |
|
- | ||||
| 20 | 8113P054-60 | Manual, Use & Care | 07 |
|
- |
