SELECT A DIAGRAM

01 - Body


02 - Door


03 - Internal Controls


04 - Oven


05 - Top Assembly

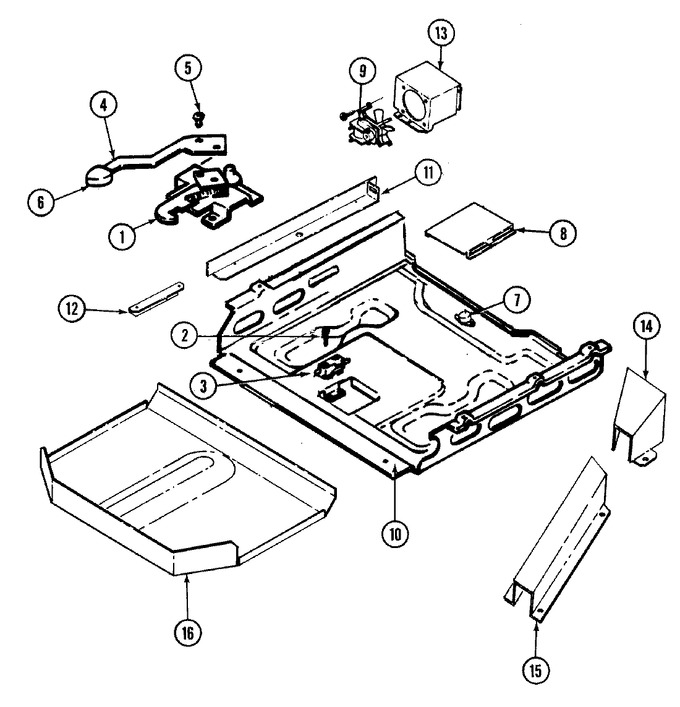

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002P025-60		Latch Assy.	07	Appelez-nous	-
1	4804F028-60		Insulation, Latch Assy.	07	Appelez-nous	-
1	3604F159-45		Shield Insulation, Catch	07	Appelez-nous	-
2	7101P130-60		Screw, Latch Switch	07	Appelez-nous	-
3	7101P130-60		Screw, Latch Switch	07	Appelez-nous	-
3	7403P323-60		Switch, Lock----na	07	Appelez-nous	-
3	7003P051-60		Insulation, Fiberboard	07	Appelez-nous	-
4	8009P017-60		Lever	07	Appelez-nous	-
5	7116P003-60		Bolt	07	Appelez-nous	-
5	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	07			$ 4.29
6	7701P133-60		Handle, Door Latch (wht)	07	Appelez-nous	-
6	7112P003-60		Clip, Latch Handle	07	Appelez-nous	-
7	7403P307-60		Thermostat, Snap Acting	07	Appelez-nous	-
8	4005F443-51		Cover, Door Latch	07	Appelez-nous	-
9	7427P012-60		Fan	07	Appelez-nous	-
10	4011F223-80		Box, Burner	07	Appelez-nous	-
10	W11233072		Screw   (Replaces: 7101P290-60)	07		Immediately	$ 12.62
11	3604F173-51		Shield, Heat (lt)	07	Appelez-nous	-
11	3604F174-51		Shield, Heat (rt)	07	Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P290-60)	07		Immediately	$ 12.62
12	3801F327-51		Bracket	07	Appelez-nous	-
13	4001F080-51		Housing, Fan	07	Appelez-nous	-
13	3818F055-51		Channel, Air	07	Appelez-nous	-
14	3818F056-51		Duct, Air	07	Appelez-nous	-
15	W11233072		Screw   (Replaces: 7101P290-60)	07		Immediately	$ 12.62
15	3818F054-51		Channel, Bottom	07	Appelez-nous	-
15	3818F053-51		Channel, Air Top	07	Appelez-nous	-
16	5170P138-60		Harness, Sensor/lock	07	Appelez-nous	-
16	5120D028-60		Harness, Latch/switch	07	Appelez-nous	-
16	5170P147-60		Harness, Control To Relay	07	Appelez-nous	-
16	3604F199-51		Shield, Wire	07	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
