View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

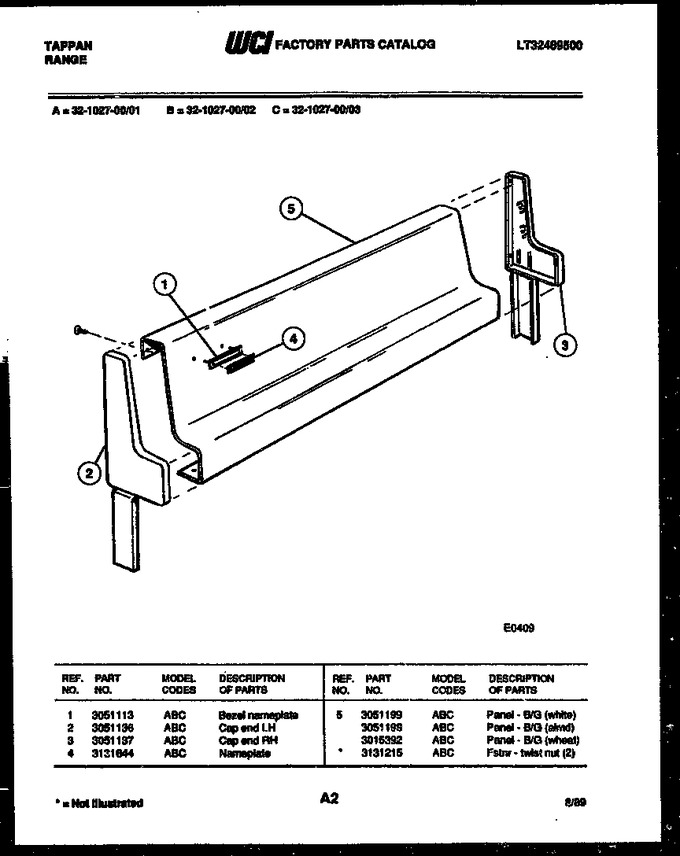

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 2 | 3051136 | Cap-end (lh) |
|
- | |||||
| 3 | 3051137 | Cap-end (rh) |
|
- | |||||
| 4 | 3131644 | Name Plate |
|
- | |||||
| 5 | 3051199 | Panel - B/g (white) |
|
- | |||||
| *15355 | 3131215 | Fstnr Twist Nut (2) |
|
- |
