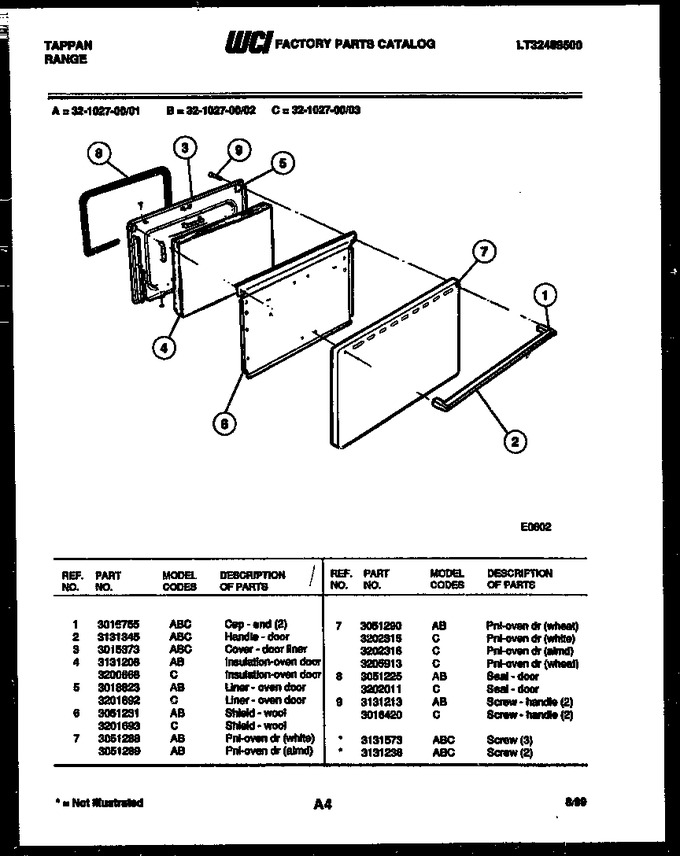

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016755 | Cap, End (2) |
|
- | |||||
| 2 | 3131345 | Handle-door |
|
- | |||||
| 3 | 3015373 | Cover-door Liner |
|
- | |||||
| 4 | 3200668 | Insulation-oven Door |
|
- | |||||
| 5 | 3201692 | Liner, Oven Door |
|
- | |||||
| 6 | 3201693 | Shield, Wool |
|
- | |||||
| 7 | 3202315 | Pnl-oven Dr (white) |
|
- | |||||
| 8 | 3202011 | Seal-door |
|
- | |||||
| 9 | 3016420 | Screw - Handle (2) |
|
- | |||||
| *15360 | 3131573 | Screw (3) |
|
- | |||||
| *15360 | 3131236 | Screw (2) |
|
- |
