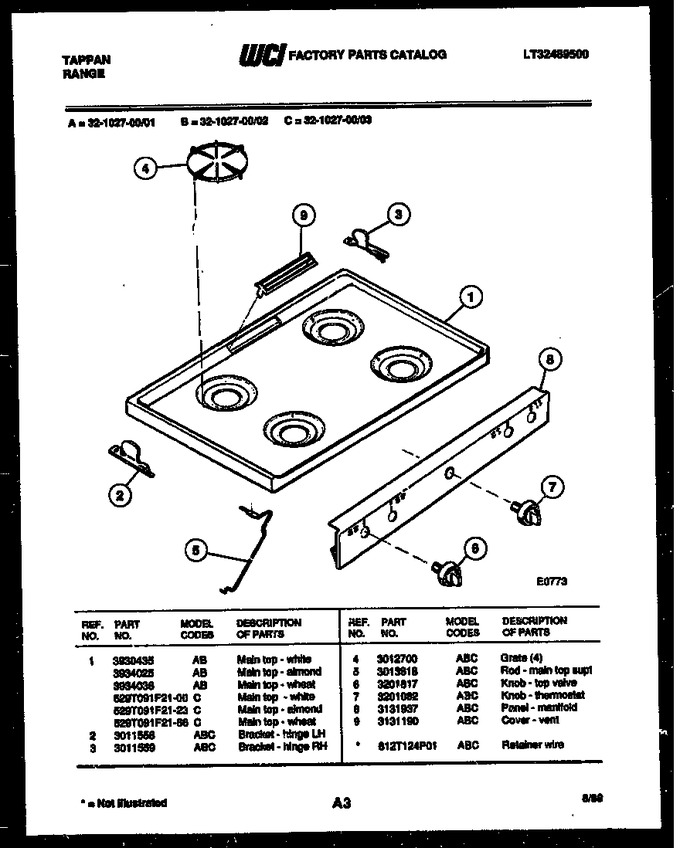

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 529T091F21-00 | Main Top - White |
|
- | |||||
| 2 | 3011558 | Bracket, Hinge, Lh |
|
- | |||||
| 3 | 3011559 | Bracket, Hinge, Rh |
|
- | |||||
| 4 | 3012700 | Grate (4) |
|
- | |||||
| 5 | 3013818 | Rod - Maintop Supt. |
|
- | |||||
| 6 | 3201817 | Knob - Top Valve |
|
- | |||||
| 7 | 3201082 | Knob - Thermostat |
|
- | |||||
| 8 | 3131937 | Panel - Manifold |
|
- | |||||
| 9 | 3131190 | Cover-vent |
|
- | |||||
| *15357 | 612T124P01 | Retainer - Wire |
|
- |
