SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Drawer Parts


06 - Burner, Manifold And Gas Control


07 - Body Parts

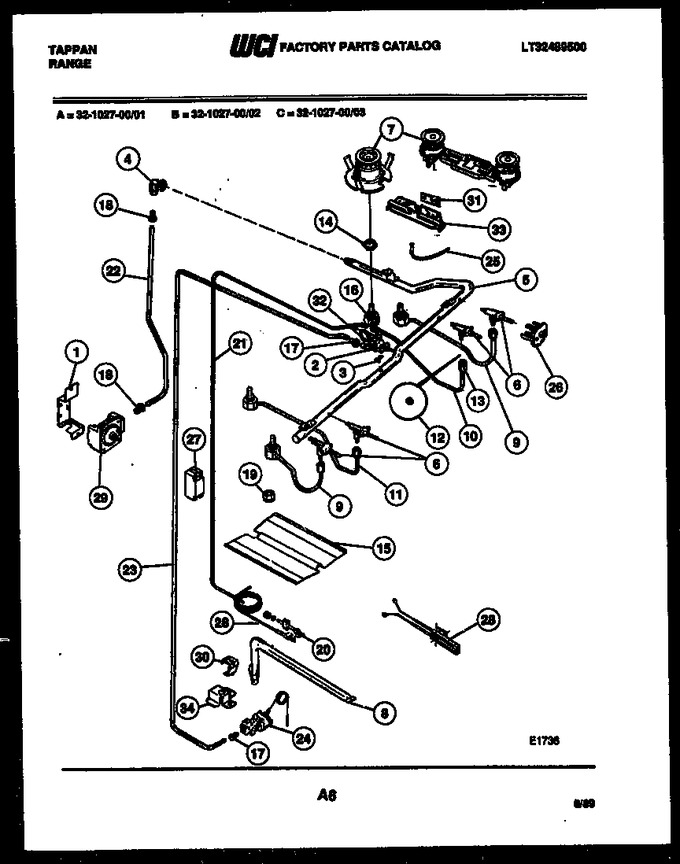

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131110		Bracket - Regul		Appelez-nous	-
2	3201107		Thermostat		Appelez-nous	-
4	3012204		Elbow		Appelez-nous	-
5	3201106		Manifold - Pipe		Appelez-nous	-
6	774T135P01		Valve - 2 Pos (4)		Appelez-nous	-
7	3131147		Burner - Top (2)		Appelez-nous	-
8	3131439		Burner-oven				$ 204.59
9	3131970		Burner-tube (lf Rf)		Appelez-nous	-
10	3011569		Burner-tube (rr)		Appelez-nous	-
11	3011570		Burner-tube (lr)		Appelez-nous	-
12	3012358		Ferrule		Appelez-nous	-
13	3131148		Nut-compression		Appelez-nous	-
14	3013279		Nut, Special				$ 2.34
15	3131327		Baffle, Oven		Appelez-nous	-
16	3131404		Fitting, Loxit		Appelez-nous	-
17	3131403		Fitting, Loxit		Appelez-nous	-
18	3131261		Fitting, Loxit		Appelez-nous	-
19	479T069P03		Nut, Baffle		Appelez-nous	-
22	3014477		Tube - Alum		Appelez-nous	-
23	3131448		Tube - Alum		Appelez-nous	-
24	3131449		Valve - Safety		Appelez-nous	-
26	695T225P02		Switch-igniter (4)		Appelez-nous	-
27	3200669		Spark Module		Appelez-nous	-
28	3131300		Igniter, Oven		Appelez-nous	-
29	08067923		Control-regul.		Appelez-nous	-
30	3018603		Brkt - Ov. Burner Supt		Appelez-nous	-
31	3016993		Retainer-igniter		Appelez-nous	-
32	695T220P01		Switch, Oven Igniter		Appelez-nous	-
34	3131438		Bracket, Valve		Appelez-nous	-
25A	3200276		Base Igniter-top Brnr		Appelez-nous	-
