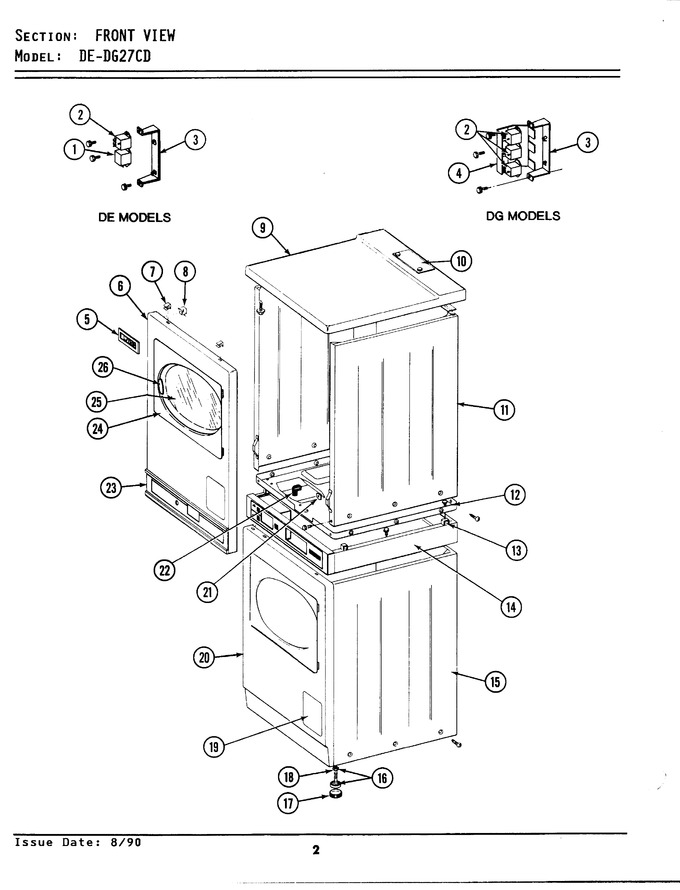

Diagram #	Part Number	Description	Availability	Ships	Price
001	306398	Relay - Spst Heater			$ 41.78
001	WP3177991	Screw (Replaces: Y251119)		Immediately	$ 6.47
002	901961	Relay (4 Contact)	Appelez-nous	-
002	WP3177991	Screw (Replaces: Y251119)		Immediately	$ 6.47
003	314627	Relay Bracket	Appelez-nous	-
003	Y310632	Screw	Appelez-nous	-
004	NLA	Part Not Used	Appelez-nous	-
004	Y310632	Screw	Appelez-nous	-
005	NLA	Name Plate	Appelez-nous	-
006	NLA	Front Panel - Upper (white)	Appelez-nous	-
007	WP22001650	Fastener, Panel (Replaces: 212982)		Immediately	$ 7.34
008	Y310376	Clip, Wire Harness	Appelez-nous	-
009	307104	Top Cover Assy. (wht)	Appelez-nous	-
009	NLA	(alm)	Appelez-nous	-
010	NLA	Cover Plate	Appelez-nous	-
010	WP90767	Screw (Replaces: Y313559)		Immediately	$ 7.04
011	204445	Screw & Fastener Asy.	Appelez-nous	-
011	213007	Screw, Cabinet			$ 10.99
011	NLA	Cabinet (wht)	Appelez-nous	-
012	306261	Base Assembly	Appelez-nous	-
012	314663	Screw	Appelez-nous	-
013	310933	Fastener	Appelez-nous	-
014	NLA	Coupling Collar-white	Appelez-nous	-
014	Y310632	Screw	Appelez-nous	-
015	NLA	Cabinet, Lower (white)	Appelez-nous	-
016	22003428	Leg, Adjustable (w/nut)---s (Replaces: Y302699)		Immediately	$ 14.41
017	WP210684	Foot, Rubber (Replaces: 210684)		Immediately	$ 14.09
018	WP210385	Nut, Lock (Replaces: 210385)			$ 6.26
019	NLA	Part Not Used	Appelez-nous	-
020	204439	Screw & Fstner Assy(frt.panel)			$ 8.80
020	NLA	Panel, Front (wht)	Appelez-nous	-
021	NLA	Retainer, Front Panel	Appelez-nous	-
022	314522	Strain Relief	Appelez-nous	-
023	NLA	Upper Control Extrusion	Appelez-nous	-
024	314967	Door W/window Outer Half (wht)	Appelez-nous	-
024	NLA	Door, Complete W/o Hinges (wht	Appelez-nous	-
025	308069	Inner Door	Appelez-nous	-
026	314939	Handle			$ 32.46
026	314974	(almond)	Appelez-nous	-
026	314975	Handle	Appelez-nous	-
