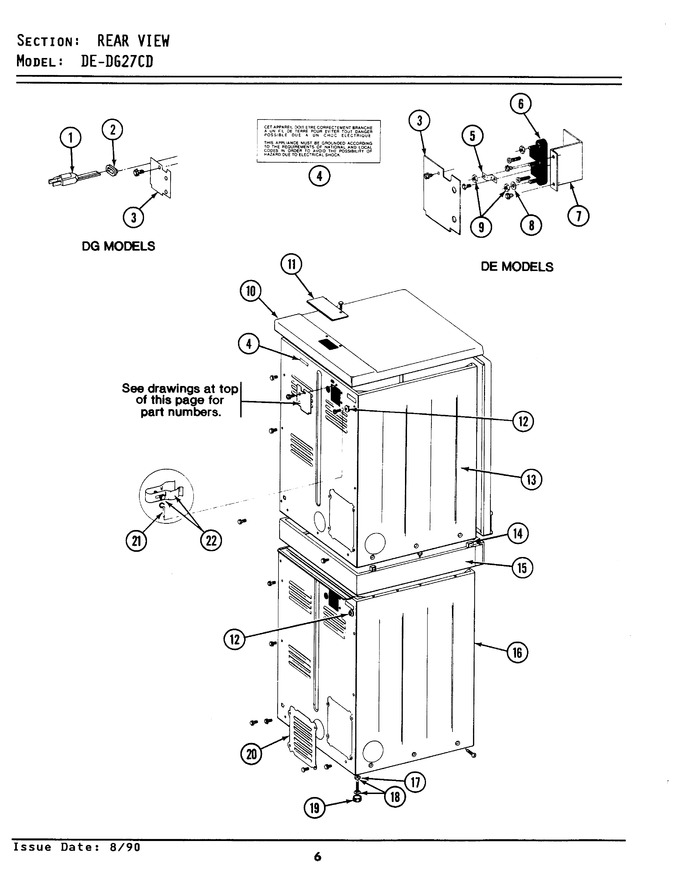

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 302521 | Part Not Used |
|
- | |||||
| 002 | 211881 | Part Not Used |
|
- | |||||
| 003 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 003 | Y312905 | Cover, Terminal |
|
- | |||||
| 004 | 214519 | Label, Electrical Instr. |
|
- | |||||
| 005 | WP489483 | Screw, No.10-32 X 1/2 Inch (Replaces: Y311423) |
|
$ 9.78 | |||||
| 005 | Y312184 | Strap, Ground |
|
- | |||||
| 006 | 400008 | Block, Terminal |
|
$ 29.20 | |||||
| 006 | W11164114 | Screw, No.10-24 X 3/4 Inch-----o (Replaces: Y312209) |
|
$ 3.76 | |||||
| 007 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 007 | Y312904 | Bracket, Terminal Block |
|
- | |||||
| 008 | Y311270 | Washer, Terminal Block |
|
$ 8.75 | |||||
| 009 | WP112432 | Nut, Terminal Block (Replaces: 311484) |
|
$ 7.16 | |||||
| 010 | 307104 | Top Cover Assy. (wht) |
|
- | |||||
| 010 | NLA | (alm) |
|
- | |||||
| 011 | NLA | Cover Plate |
|
- | |||||
| 011 | WP90767 | Screw (Replaces: Y313559) |
|
Immediately | $ 7.04 | ||||
| 012 | NLA | Screw & Washer Assy. |
|
- | |||||
| 013 | 213007 | Screw, Cabinet |
|
$ 10.99 | |||||
| 013 | NLA | Cabinet (wht) |
|
- | |||||
| 013 | Y310632 | Screw |
|
- | |||||
| 014 | 310933 | Fastener |
|
- | |||||
| 015 | NLA | Coupling Collar-white |
|
- | |||||
| 015 | Y310632 | Screw |
|
- | |||||
| 016 | NLA | Cabinet, Lower (white) |
|
- | |||||
| 017 | WP210385 | Nut, Lock (Replaces: 210385) |
|
$ 6.26 | |||||
| 018 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) |
|
Immediately | $ 14.41 | ||||
| 019 | WP210684 | Foot, Rubber (Replaces: 210684) |
|
Immediately | $ 14.09 | ||||
| 020 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.04 | ||||
| 020 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 020 | Y312951 | Cover, Access |
|
- | |||||
| 021 | 311155 | Ground Wire |
|
$ 8.77 | |||||
| 022 | 301548 | Clamp, Ground (w/screw) |
|
- |
