Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

001 WP90767 Screw   (Replaces: Y313559) In-Stock Immediately $ 7.04

001 Y314174 Terminal Cover - Canada Appelez-nous -
002 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

002 NLA Conduit Entrance Appelez-nous -
002 WP90767 Screw   (Replaces: Y313559) In-Stock Immediately $ 7.04

003 WP112432 Nut, Terminal Block   (Replaces: 311484) Special Order $ 7.16

004 400008 Block, Terminal Special Order $ 29.20

004 W11164114 Screw, No.10-24 X 3/4 Inch-----o   (Replaces: Y312209) Special Order $ 3.76

005 NLA Cap Screw, 1/4-20 X 1/2 Appelez-nous -
006 Y052721 Nut Special Order $ 21.38

007 NLA Top Cover (wht) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

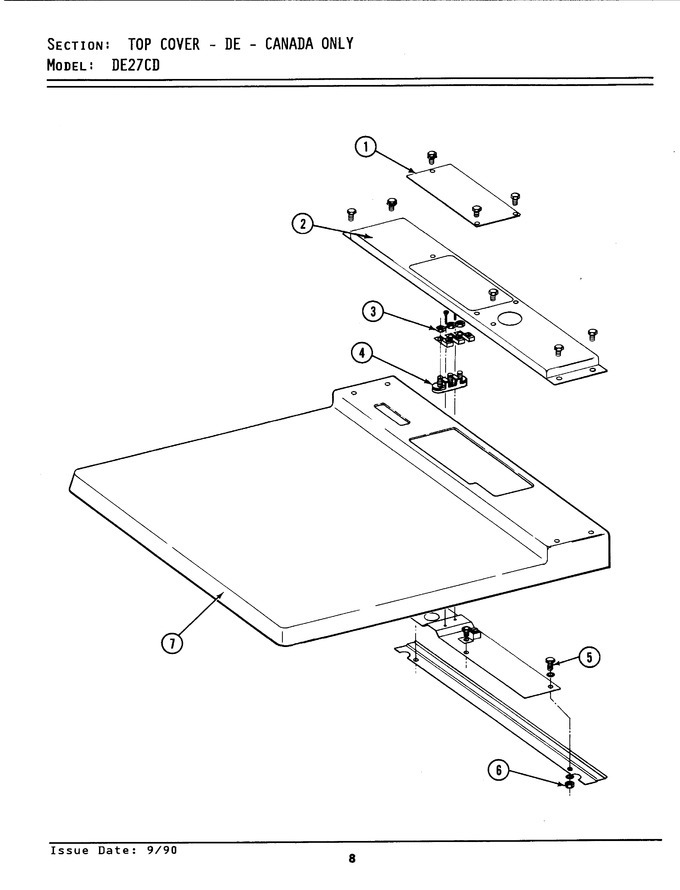

Diagram for LDE27CD
