SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Top Cover-canada (de)


04 - Controls & Upper Dryer Front Panel


05 - Front Panel & Door Assembly


06 - Lint Screen, Tumbler (front & Back)

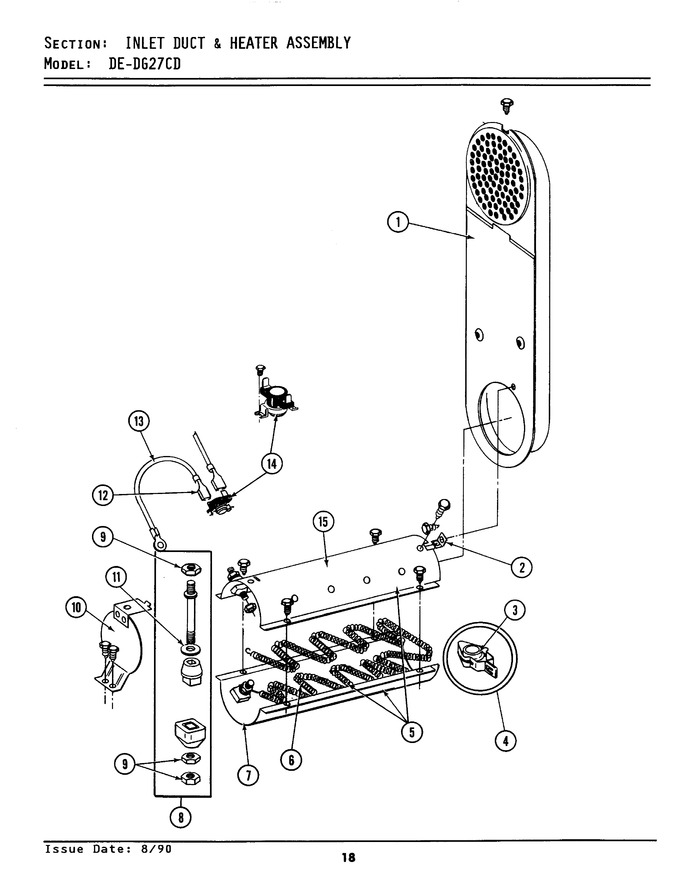

07 - Inlet Duct & Heater Assembly


08 - Motor, Blower, Base Frame & Thermostats


09 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
001	NLA		Inlet Duct Assy.		Appelez-nous	-
002	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
002	Y312890		Retainer, Heater Chamber		Appelez-nous	-
003	Y313270		Insulator, Heater Element				$ 5.85
004	WPY303881		Clip & Insulator Assembly   (Replaces: Y303881)			Immediately	$ 19.79
005	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
005	Y303778		Heater Assembly Complete				$ 199.36
005	Y303856		Heater Assembly Complete		Appelez-nous	-
006	W10116793		Heater Element Kit (208v)   (Replaces: Y304837)				$ 190.96
006	Y313537		Heater Element 240 Volt		Appelez-nous	-
007	Y313576		Heater Chamber, Bottom		Appelez-nous	-
008	Y304596		Terminal Insulator Assembly			Immediately	$ 22.97
009	WP112432		Nut, Terminal Block   (Replaces: 311484)				$ 7.16
010	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
010	304124		Heater Shield		Appelez-nous	-
011	WP311093		Washer, 7/32 Inch   (Replaces: 311093)				$ 7.25
012	NLA		Screw, No.4 X 3/4 Inch		Appelez-nous	-
013	WPY304693		Jumper Wire   (Replaces: Y304693)			Immediately	$ 6.47
014	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
014	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)			Immediately	$ 44.02
014	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)			Immediately	$ 66.12
015	WP90767		Screw   (Replaces: 211294)			Immediately	$ 7.04
015	Y313575		Heater Chamber, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
