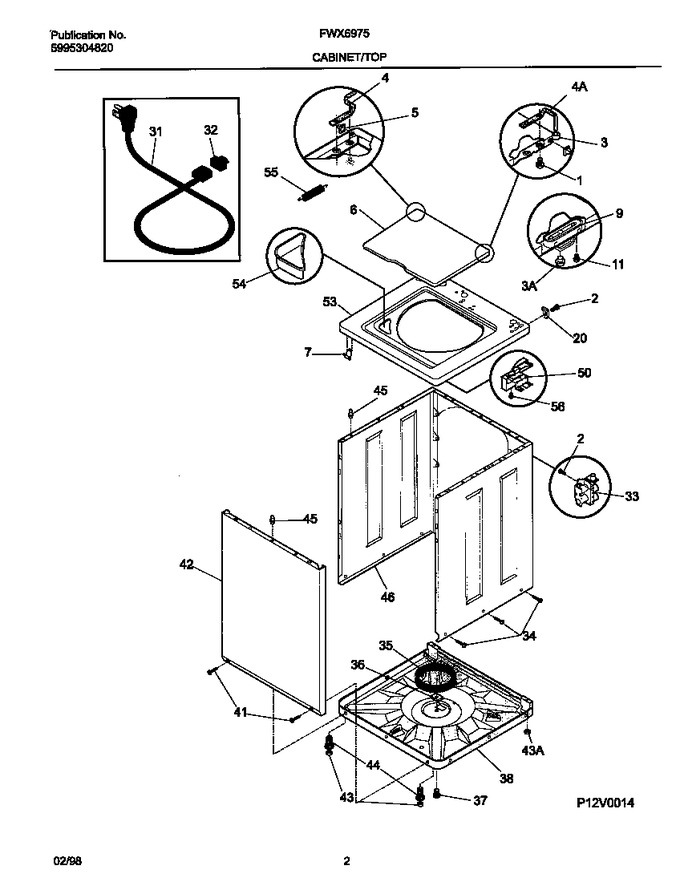

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1315875000		Screw-hinge,pph 45deg Hdrpt ,6-32x.312		Appelez-nous	-
2	1311682000		Screw,8-18 X 0.31		Appelez-nous	-
3	1314333000		Bumper-hinge		Appelez-nous	-
3	32043690		Bumper-lid		Appelez-nous	-
4	1313859100		Hinge-bar,lh		Appelez-nous	-
4	1313742100		Hinge-bar,rh		Appelez-nous	-
5	53032087430		Grommet-lid		Appelez-nous	-
6	1313744010		Lid,white ,w/o Inst.		Appelez-nous	-
7	32058210		Clip-top Panel,to Front Panel		Appelez-nous	-
9	1313900000		Strike-lid		Appelez-nous	-
11	32043680		Screw-strike,pfh B ,6-20x.375		Appelez-nous	-
20	53032087510		Hinge-rear Cabinet		Appelez-nous	-
31	53032087650		Cord-service		Appelez-nous	-
32	53032094280		Bushing-cord		Appelez-nous	-
33	1313893000		Valve-water		Appelez-nous	-
34	1312055000		Screw-body,1/4-14 X 0.625		Appelez-nous	-
35	53080023850		Ring-snubber		Appelez-nous	-
36	32043800		Block-shipping		Appelez-nous	-
37	1316589000		Screw-shipping		Appelez-nous	-
38	53033112130		Base Assembly		Appelez-nous	-
41	1312584000		Screw-front Pnl,comb Th Ab ,10-16 X 0.500		Appelez-nous	-
42	1311043030		Panel-front,white		Appelez-nous	-
43	1314221000		Pad-leveling Leg		Appelez-nous	-
43	1314222000		Pad-level Leg		Appelez-nous	-
44	53033096730		Leg-leveling,with Pad		Appelez-nous	-
45	1313464000		Pin-locating		Appelez-nous	-
46	1315935000		Body-white		Appelez-nous	-
50	1316756000		Lock-lid		Appelez-nous	-
53	1314526120		Panel-top,white		Appelez-nous	-
54	53032087780		Dispenser-bleach		Appelez-nous	-
55	53032128760		Spring-lid		Appelez-nous	-
56	1312438000		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv		Appelez-nous	-
*10880	53033095030		Clip-backsheet		Appelez-nous	-
