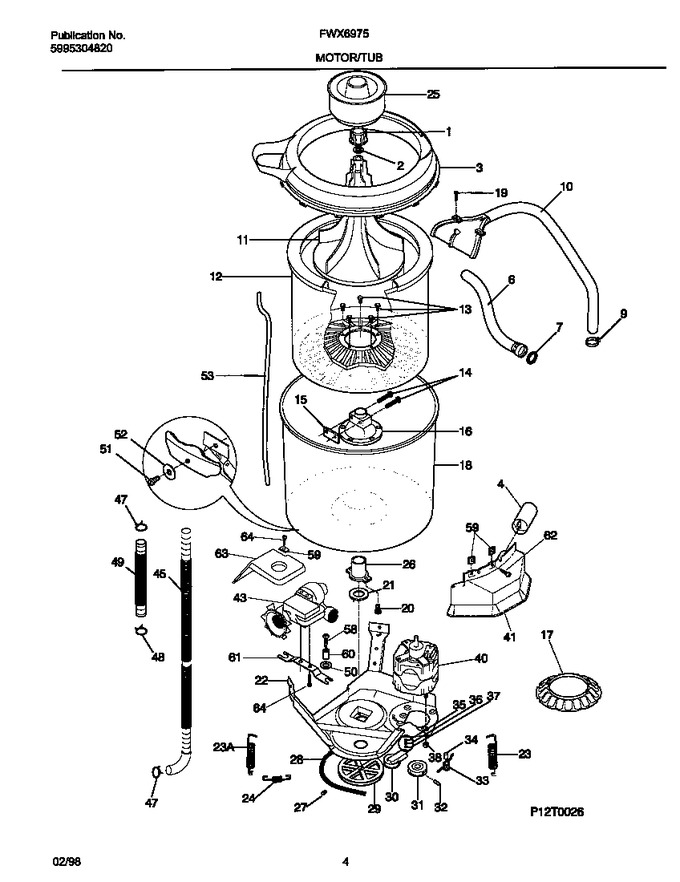

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32043950		Cap-agitator		Appelez-nous	-
2	32043960		Seal-cap		Appelez-nous	-
3	1313983000		Cover-splash Tub		Appelez-nous	-
4	1312123010		Capacitor		Appelez-nous	-
6	53032710090		Hose-inlet		Appelez-nous	-
7	53031612960		Washer-inlet Hose		Appelez-nous	-
9	53033048240		Clamp		Appelez-nous	-
10	32044000		Hose & Nozzle		Appelez-nous	-
11	32044010		Agitator		Appelez-nous	-
12	1310904000		Tub-spin,and Trunnion		Appelez-nous	-
13	53032832930		Screw-trunnion,unc2ax.625 ,.312-18 ,(5)		Appelez-nous	-
14	1311928000		Screw-lockplate,hx ,.312-18 X.1.625		Appelez-nous	-
15	53080019230		Lock Plate		Appelez-nous	-
16	1315451010		Trunnion		Appelez-nous	-
17	131076600		Filter-lint (not Available Individually, Part Sonic Weld				$ 66.69
18	1315572010		Tub-splash,w\air Dome,brng		Appelez-nous	-
19	1312053000		Screw-door,10-16x.75		Appelez-nous	-
20	32051500		Screw-tub Bearing,pph B St/z ,8-12 X 0.750		Appelez-nous	-
21	53080024010		Washer,spin Bearing ,upper		Appelez-nous	-
22	1313736100		Leg & Dome Assy		Appelez-nous	-
23	53032088580		Spring-vertical,short		Appelez-nous	-
23	53032088600		Spring-vertical		Appelez-nous	-
24	1313739000		Spring-horizontal		Appelez-nous	-
25	32054050		Dispenser-fabric		Appelez-nous	-
26	32044050		Bearing-outer Tub		Appelez-nous	-
27	53033048250		Screw-set,hhd Cup Pt ,5/16-18x.85 ,pulley,transm.		Appelez-nous	-
28	1316861000		Belt-washer		Appelez-nous	-
29	1314983000		Pulley-transmission		Appelez-nous	-
30	32044220		Arm-idler		Appelez-nous	-
31	32044230		Pulley-motor		Appelez-nous	-
32	32044240		Pin-roll		Appelez-nous	-
33	32044250		Spring-torsion		Appelez-nous	-
34	32044260		Sleeve-idler		Appelez-nous	-
35	31614330		Ring-retaining		Appelez-nous	-
36	53032610310		Washer-pivot Shaft		Appelez-nous	-
37	53031613060		Washer-spring		Appelez-nous	-
38	53033187080		Nut-motor		Appelez-nous	-
40	1316533000		Motor-main,washer		Appelez-nous	-
41	1315133000		Shield-motor		Appelez-nous	-
43	1312684010		Pump-complete		Appelez-nous	-
45	1314612000		Hose-drain,90 Inch		Appelez-nous	-
45	1315065000		Clip-drain Hose		Appelez-nous	-
47	53032947680		Clamp-hose To Tub		Appelez-nous	-
48	1313062340		Clamp-pump		Appelez-nous	-
49	1314948000		Hose-pump To Tub		Appelez-nous	-
50	1312686000		Grommet-pump		Appelez-nous	-
51	1316590000		Screw-leg,hwh Typ23 ,5/16-18x.875		Appelez-nous	-
52	1313158000		Washer-leg,idx.040 ,1.25 Odx.335		Appelez-nous	-
53	53007719960		Tube-pressure		Appelez-nous	-
58	1314649000		Screw-pump-to Bracket		Appelez-nous	-
59	53032830520		Clip-shield		Appelez-nous	-
60	1312687000		Spacer-pump		Appelez-nous	-
61	1312685000		Bracket-pump		Appelez-nous	-
62	1312584000		Screw-front Pnl,comb Th Ab ,10-16 X 0.500		Appelez-nous	-
63	1314943000		Shield-pump		Appelez-nous	-
64	53032830720		Screw,pump/brk/shield		Appelez-nous	-
*10881	53032128770		Insert-spring Adj		Appelez-nous	-
