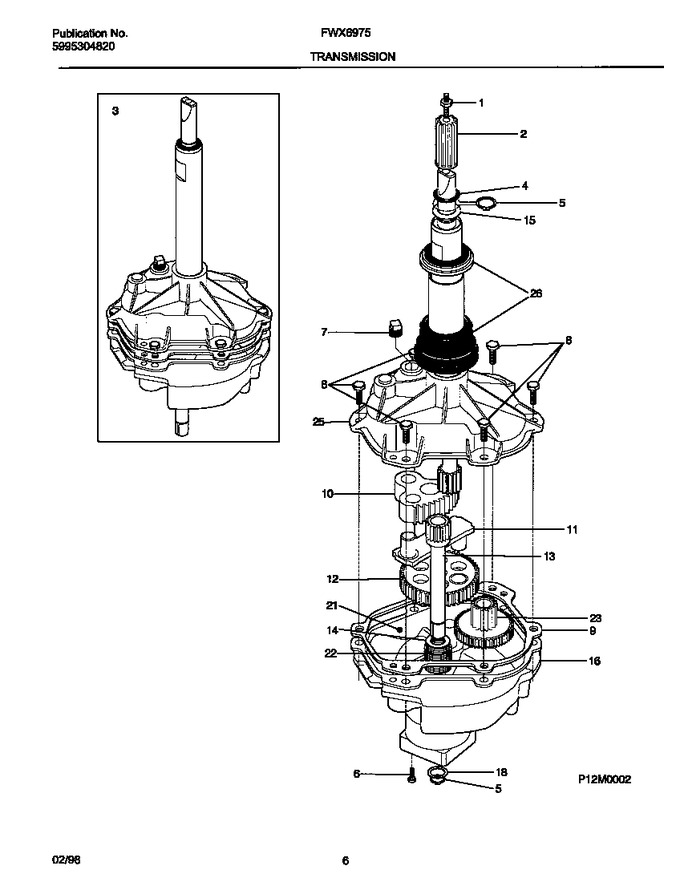

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1312068000		Stud-agitator Cap		Appelez-nous	-
2	53033061390		Hub-drive,agitator		Appelez-nous	-
3	1315554000		Transmission Assy		Appelez-nous	-
4	53031613070		Seal-upper Lip		Appelez-nous	-
5	53031612230		Ring-retaining		Appelez-nous	-
6	1313466000		Screw		Appelez-nous	-
7	53031612240		Plug-pipe		Appelez-nous	-
8	53080028040		Screw-transm.		Appelez-nous	-
9	53080157780		Gasket		Appelez-nous	-
10	53080112680		Gear-sector		Appelez-nous	-
11	1316327010		Rod-connecting		Appelez-nous	-
12	53080154960		Gear-crank		Appelez-nous	-
13	53080149050		Shaft-lower		Appelez-nous	-
14	53031612260		Washer-thrust		Appelez-nous	-
15	53031612320		Washer		Appelez-nous	-
16	1315578000		Housing-lower		Appelez-nous	-
18	53080024750		Washer-spacer		Appelez-nous	-
21	30052420		Oil-transmission,1qt		Appelez-nous	-
22	1314176000		Spring-small Lgs		Appelez-nous	-
23	53031611750		Gear-idler		Appelez-nous	-
25	1315867000		Housing-upper		Appelez-nous	-
26	50302793940		Seal-tub		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
