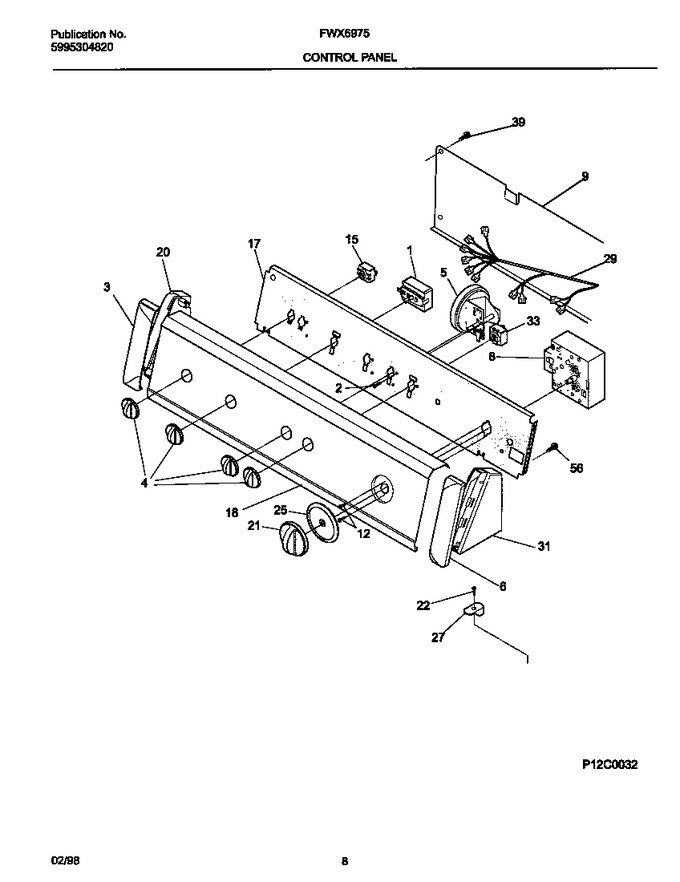

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1311579000		Switch-speed		Appelez-nous	-
2	073325-0000		Scr/sn8-18x.375 Comb Pnhd Ab		Appelez-nous	-
3	1311226100		Cover-end Cap,black ,lh		Appelez-nous	-
4	1311411000		Knob-rotary,blk/blue		Appelez-nous	-
5	1313955000		Switch-pressure		Appelez-nous	-
6	1311226000		Cover-end Cap,black ,rh		Appelez-nous	-
8	1315816000		Timer		Appelez-nous	-
9	1311417010		Backsheet-console		Appelez-nous	-
15	1310812000		Switch-temperature		Appelez-nous	-
17	1315800060		Bracket-control		Appelez-nous	-
18	1316300000		Panel-control		Appelez-nous	-
20	1311227100		End Cap,black ,lh		Appelez-nous	-
21	1315920000		Knob-timer,black		Appelez-nous	-
22	1312663000		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	1315921000		Dial-timer		Appelez-nous	-
27	1311970000		Clip-control Panel		Appelez-nous	-
29	1316543000		Harness-main		Appelez-nous	-
31	1311227000		End Cap,black ,rh		Appelez-nous	-
33	1312432000		Switch-on/off		Appelez-nous	-
39	1312051000		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive		Appelez-nous	-
56	1312438000		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
