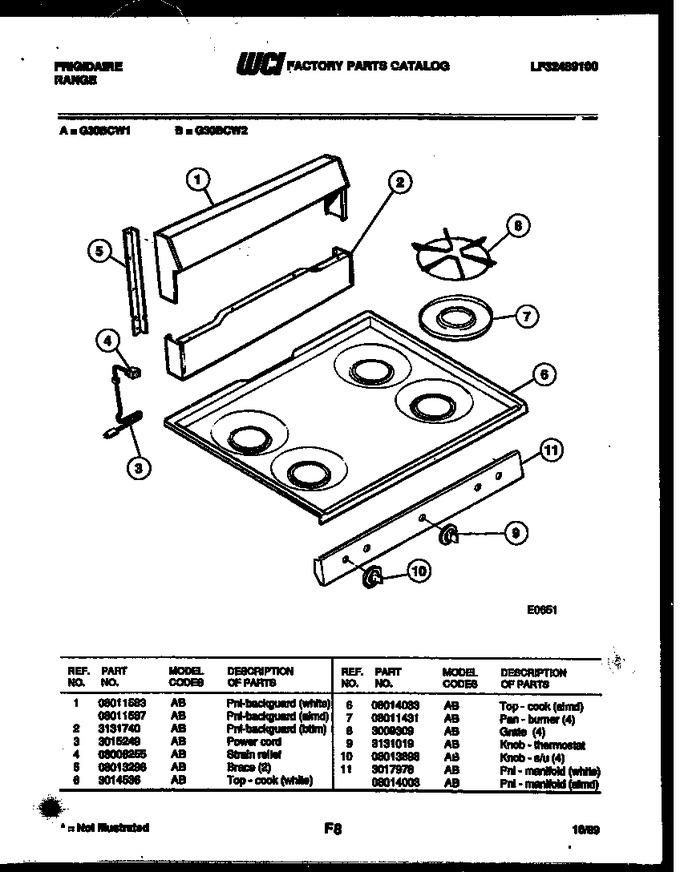

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011583 | Pnl-backguard (white) |
|
- | |||||
| 2 | 3131740 | Pnl-backguard (bttm) |
|
- | |||||
| 3 | 3015249 | Power Cord |
|
- | |||||
| 4 | 08008255 | Strain - Relief |
|
- | |||||
| 5 | 08013296 | Brace (2) |
|
- | |||||
| 6 | 3014536 | Top-cook (white) |
|
- | |||||
| 7 | 08011431 | Pan-burner (4) |
|
- | |||||
| 8 | 3009309 | Grate (4) |
|
- | |||||
| 9 | 3131019 | Knob - Thermostat |
|
- | |||||
| 10 | 08013898 | Knob - S/u (4) |
|
- | |||||
| 11 | 3017978 | Pnl - Manifold (white) |
|
- |
