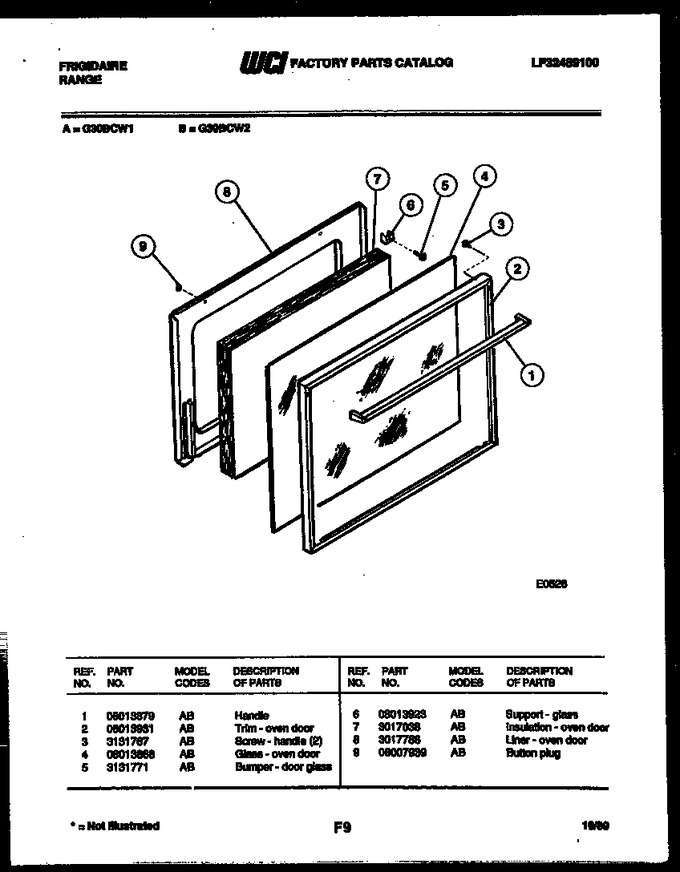

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013879 | Handle |
|
- | |||||
| 2 | 08013931 | Trim - Oven Door |
|
- | |||||
| 3 | 3131767 | Screw - Handle (2) |
|
- | |||||
| 4 | 08013868 | Glass - Oven Door |
|
- | |||||
| 5 | 3131771 | Bumper - Door Glass |
|
- | |||||
| 6 | 08013923 | Support - Glass |
|
- | |||||
| 7 | 3017038 | Insulation - Oven Door |
|
- | |||||
| 8 | 3017786 | Liner - Oven Door |
|
- | |||||
| 9 | 08007939 | Button Plug |
|
- |
