02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

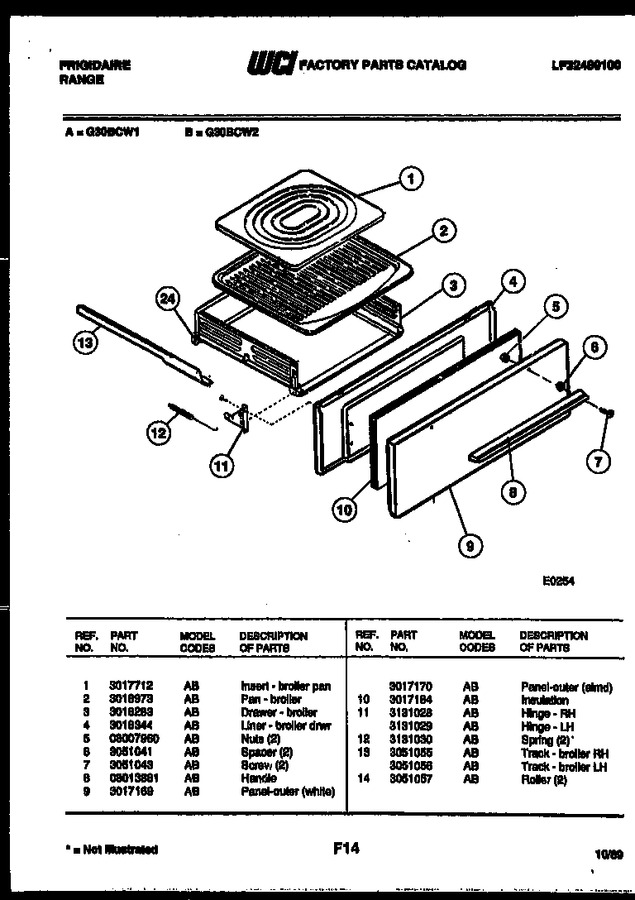

| 1 | 3017712 | Insert-broiler Pan |
|
- | |||||
| 2 | 3016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 3018344 | Liner - Broiler Drwr |
|
- | |||||
| 5 | 08007960 | Nuts (2) |
|
- | |||||
| 6 | 3051041 | Spacer (2) |
|
- | |||||
| 7 | 3051043 | Screw (2) |
|
- | |||||
| 8 | 08013881 | Handle |
|
- | |||||
| 9 | 3017169 | Panel-outer (white) |
|
- | |||||
| 10 | 3017184 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge - Rh |
|
- | |||||
| 12 | 3131030 | Spring (2) |
|
- | |||||
| 13 | 3051055 | Track - Broiler Rh |
|
- | |||||
| 14 | 3051057 | Roller (2) |
|
- | |||||
| 11A | 3131029 | Hinge - Lh |
|
- | |||||
| 13A | 3051056 | Track - Broiler Lh |
|
- |
