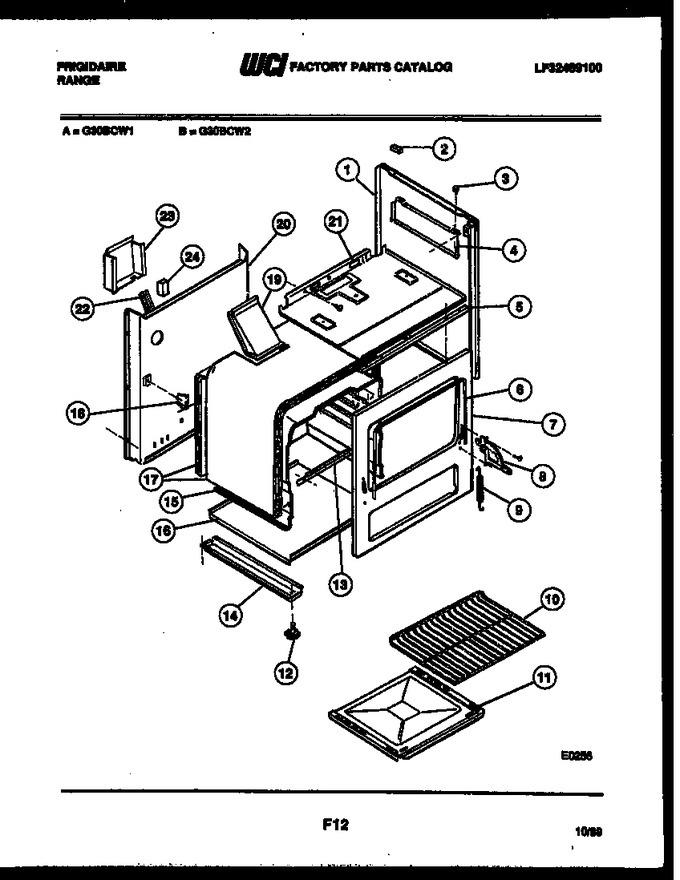

02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Burner, Manifold And Gas Control


05 - Body Parts


06 - Broiler Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Panel - Side (white)		Appelez-nous	-
2	3016129		Grommet-top Rear (2)		Appelez-nous	-
3	3051063		Grommet-top Frnt (2)		Appelez-nous	-
4	3131053		Shield-burner Box Rh		Appelez-nous	-
5	3131811		Support Control Pnl		Appelez-nous	-
6	08008022		Seal - Door		Appelez-nous	-
7	3205578		Frame - Front		Appelez-nous	-
8	3204670		Hinge - Door Rh		Appelez-nous	-
9	3009435		Spring (2)		Appelez-nous	-
10	3015714		Shelf-rack (2)		Appelez-nous	-
11	3018282		Liner-oven-bottom		Appelez-nous	-
12	3051080		Screw Leveler		Appelez-nous	-
13	3131038		Support - Oven Bttm		Appelez-nous	-
14	08068049		Rail - Base (2)		Appelez-nous	-
15	3018284		Liner - Side Rh		Appelez-nous	-
16	3011645		Bottom-oven		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3051096		Support,oven Rear		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	3013340		Back-main		Appelez-nous	-
21	3017174		Burner Box Bottom		Appelez-nous	-
22	3131046		Channel - Wire		Appelez-nous	-
23	08013953		Cover-spark Module		Appelez-nous	-
24	3015197		Spark - Module		Appelez-nous	-
*27283	9126		Clip - Body Side (2)				$ 24.99
*27283	3934059		Anti - Tip Bracket		Appelez-nous	-
15A	3018285		Liner - Side Lh		Appelez-nous	-
15B	3018347		Liner - Top		Appelez-nous	-
15C	3018995		Liner - Back		Appelez-nous	-
17A	3017172		Insulation - Back		Appelez-nous	-
4A	3131054		Shield-burner Box Lh		Appelez-nous	-
8A	3204672		Hinge - Door Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
