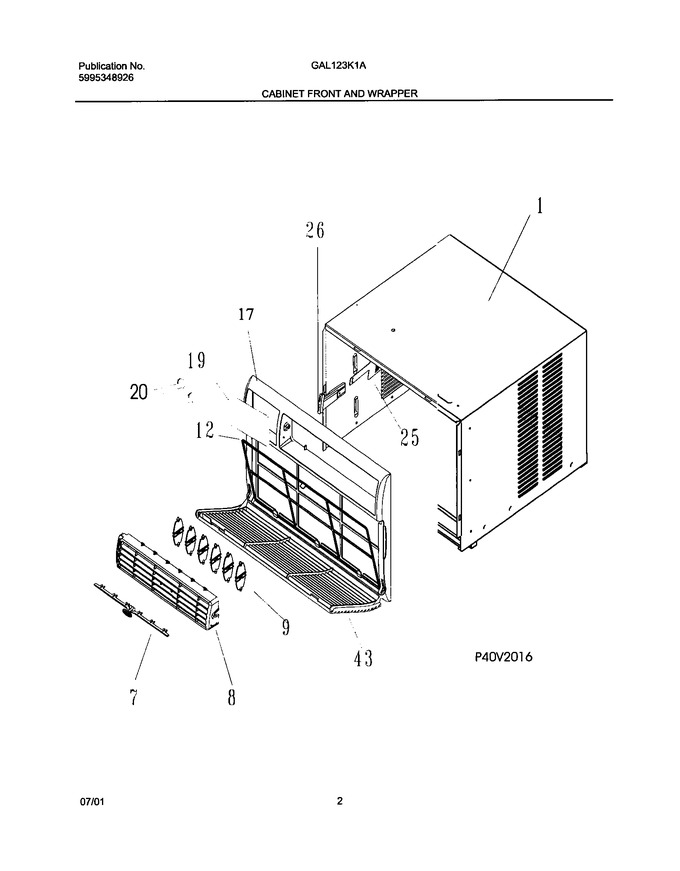

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309609212		Cabinet,sleeve ,complete Assy		Appelez-nous	-
2	5304414101		Grill,rear		Appelez-nous	-
7	309304102		Link-vertical Louver		Appelez-nous	-
8	309607706		Louver,horizontal		Appelez-nous	-
9	309607803		Louver-vertical		Appelez-nous	-
10	309607804		Louver-vertical W/handle		Appelez-nous	-
12	309609505		Filter,air ,molded Plastic		Appelez-nous	-
17	309609708		Front-cabinet,complete Assy		Appelez-nous	-
19	309614625		Dial-plate`gibson		Appelez-nous	-
20	309307013		Knob-control		Appelez-nous	-
21	5314949603		Seal-chassis,bottom		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
25	309328602		Door-vent,fresh Air		Appelez-nous	-
26	309328710		Handle-vent		Appelez-nous	-
28	309100401		Clip,cabinet Front		Appelez-nous	-
29	5304410881		Screw-front Panel,phillips ,10-16		Appelez-nous	-
NI	309607305		Frame-front		Appelez-nous	-
NI	309330201		Detent-vent				$ 26.30
