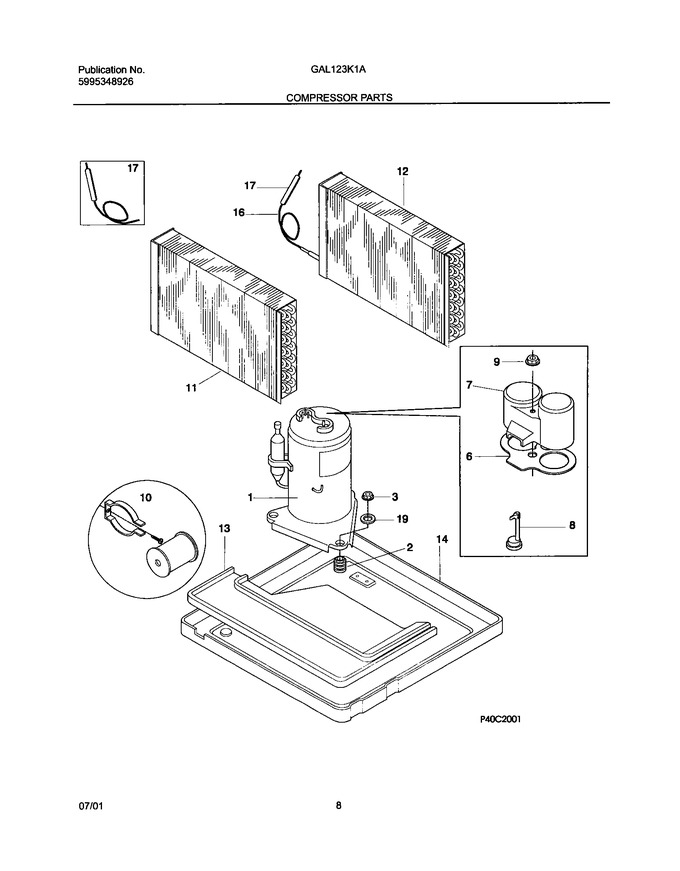

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304407864 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 7 | 3206230 | Cover-terminal |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 13 | 309606001 | Tray-evaporator |
|
- | |||||
| 14 | 5304414418 | Base-compressor,22tc Staked |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| 36 | 5303303558 | Strap-chassis Pull |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309606105 | Evaporator |
|
- | |||||
| F12 | 5304407866 | Condenser |
|
- | |||||
| F16 | 5308017120 | Capillary Tube,45 Inch Long ,cut To Length |
|
- | |||||
| F8 | 5303016697 | Overload Protector |
|
- | |||||
| NI | 5303272298 | Gasket-cover,terminal |
|
- | |||||
| NI | 5303002664 | Washer,compressor Mtg |
|
- |
