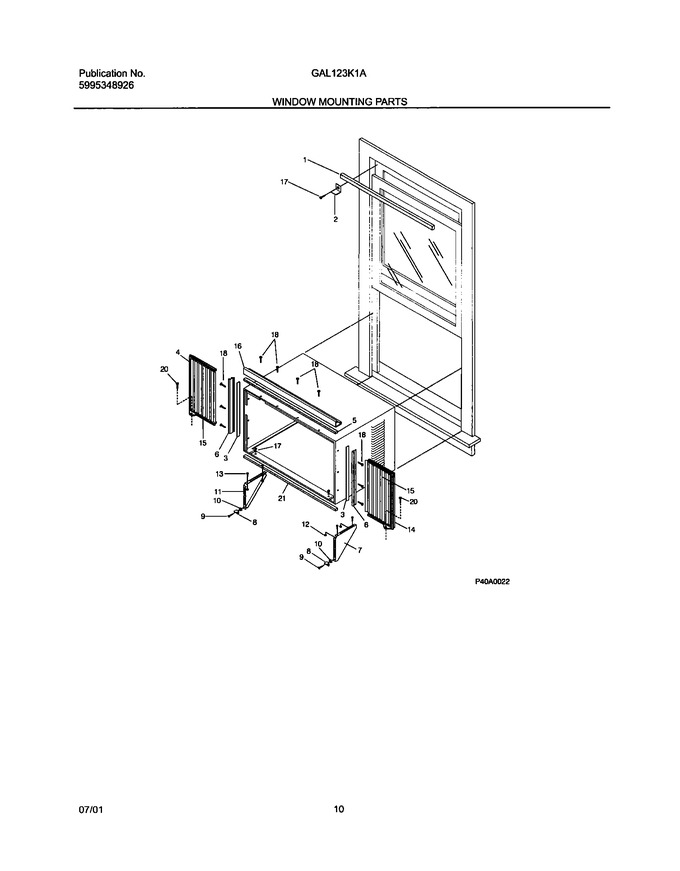

11 - Window Mounting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal-window Frame,top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
3	5303276728		Seal,retainer		Appelez-nous	-
4	5304415073		Frame		Appelez-nous	-
5	5303207200		Seal,rail ,top		Appelez-nous	-
6	5304414107		Retainer,accordian		Appelez-nous	-
7	5304414105		Bracket-support,rh		Appelez-nous	-
8	3001815		Bracket - Support		Appelez-nous	-
9	3007756		Screw		Appelez-nous	-
10	3007759		Nut - Bracket		Appelez-nous	-
11	5304414106		Bracket-support,lh		Appelez-nous	-
12	3017023		Nut,hex ,10-32 ,2		Appelez-nous	-
13	5303281649		Screw,support		Appelez-nous	-
14	5304415074		Frame		Appelez-nous	-
15	5304415072		Closure,accordian Type ,window Mount		Appelez-nous	-
16	5304414102		Rail-top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
21	5314949603		Seal-chassis,bottom		Appelez-nous	-
24	3002801		Screw,8-18b X 0.500		Appelez-nous	-
NI	309313302		Kit-window Mtg		Appelez-nous	-
NI	309313203		Kit-mounting Support		Appelez-nous	-
