New Model Search:

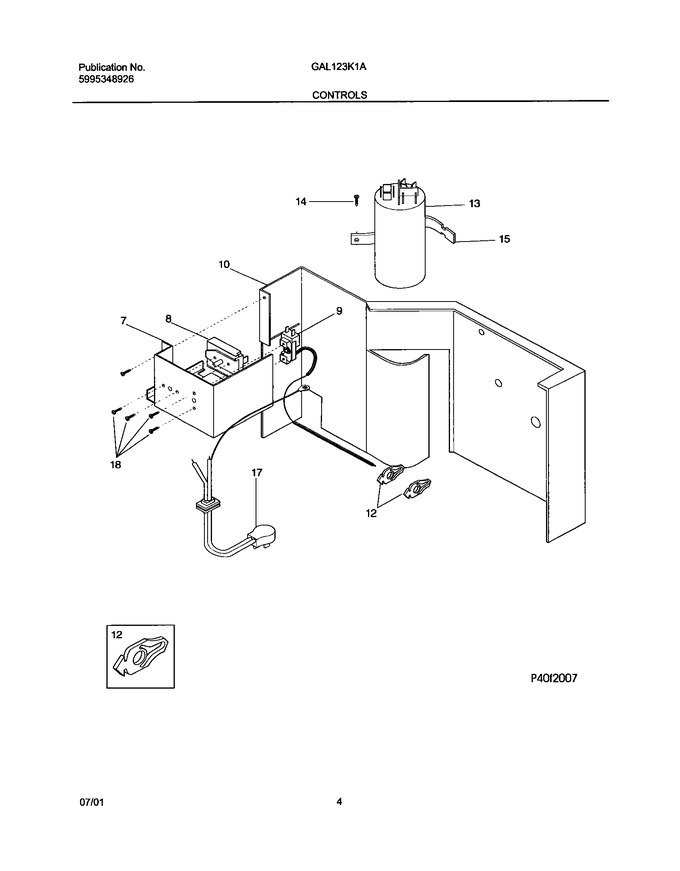

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309605603 | Control Box |
|
- | |||||
| 10 | 5303316617 | Bulkhead |
|
- | |||||
| 12 | 5303002169 | Clip-control Bulb |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343104 | Cord-service |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- | |||||
| F13 | 5303318963 | Capacitor,370 V |
|
- | |||||
| F8 | 5304417447 | Switch-7pos,3sp L Arkless |
|
- | |||||
| F9 | 5303316597 | Control-temperature |
|
- | |||||
| NI | 309111201 | Grommet,wire Protector |
|
- |
