SELECT A DIAGRAM

01 - Cover

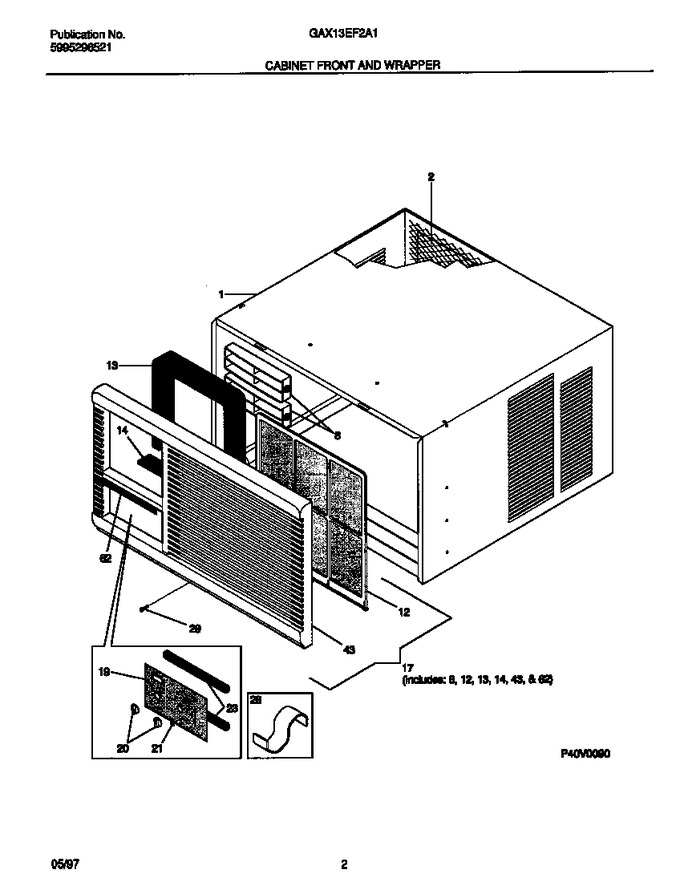

02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309609207		Cabinet		Appelez-nous	-
2	5303303597		Grille, Rear		Appelez-nous	-
8	5303307163		Louver		Appelez-nous	-
12	5303307161		Filter		Appelez-nous	-
13	5303306435		Seal-mullion		Appelez-nous	-
14	5303306434		Seal-front Panel		Appelez-nous	-
17	309610308		Front Complete		Appelez-nous	-
19	309608117		Dial Plate		Appelez-nous	-
20	5303017300		Knob-control		Appelez-nous	-
21	5303017340		Knob - Slide		Appelez-nous	-
23	5303307039		Seal,plate		Appelez-nous	-
28	309100401		Clip,cabinet Front		Appelez-nous	-
29	134178901		Screw, Truss Head, 8-18 X 0.625, Front, (2),   (Replaces: 5303293767)				$ 14.89
43	5303307162		Frame-front		Appelez-nous	-
62	309609008		Insert-front		Appelez-nous	-
