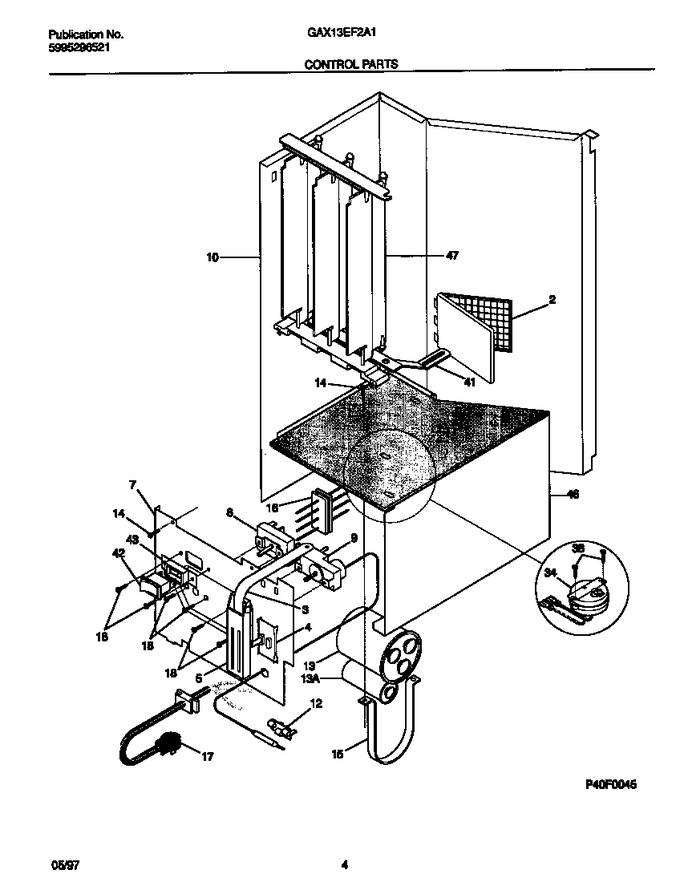

03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door-ventilator		Appelez-nous	-
3	5303306422		Strap-vent Door		Appelez-nous	-
4	5303201821		Actuator, Door		Appelez-nous	-
5	5303306431		Retainer-actuator		Appelez-nous	-
7	5303306451		Panel-control		Appelez-nous	-
8	5303307038		Switch-selector		Appelez-nous	-
9	5303307043		Control-temperature		Appelez-nous	-
10	5303306446		Bulkhead		Appelez-nous	-
12	5303211009		Clip-control Bulb		Appelez-nous	-
13	5303316906		Capacitor		Appelez-nous	-
13	5308009152		Capacitor, 370 V, 5 Mfd		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	3201973		Strap-capacitor		Appelez-nous	-
16	5303322209		Harness		Appelez-nous	-
17	5303301041		Cord - Electric Power		Appelez-nous	-
18	5303007754		Screw, .138-32 X .188		Appelez-nous	-
34	5303272099		Motor Drive		Appelez-nous	-
38	5308009156		Screw, Motor Drive		Appelez-nous	-
41	5303306426		Link-louver Vertical		Appelez-nous	-
42	309321001		Switch-rocker		Appelez-nous	-
43	5303201835		Bracket-switch		Appelez-nous	-
46	5303306449		Cover		Appelez-nous	-
47	5303306456		Louver,vertical		Appelez-nous	-
