Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303322082 Fan Blade, With Clamp Appelez-nous -
2 3202975 Screw`10-16 X 0.72 ,square Drive Appelez-nous -
3 3202950 Shroud-condenser Appelez-nous -
4 3202953 Seal-shroud Top Appelez-nous -
5 3202951 Seal Appelez-nous -
7 3015312 Screw, 8-18 X 0.47 Appelez-nous -
8 5303271841 Motor-fan Appelez-nous -
10 5303307057 Bulkhead Appelez-nous -
11 309608901 Blower Wheel Appelez-nous -
12 5303012110 Clamp-blower Special Order $ 8.14

13 5303321514 Cover-top Appelez-nous -
14 309608201 Insulation-cover Appelez-nous -
15 5303306450 Scroll Appelez-nous -
17 5308011040 Clamp - Fan Blade Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

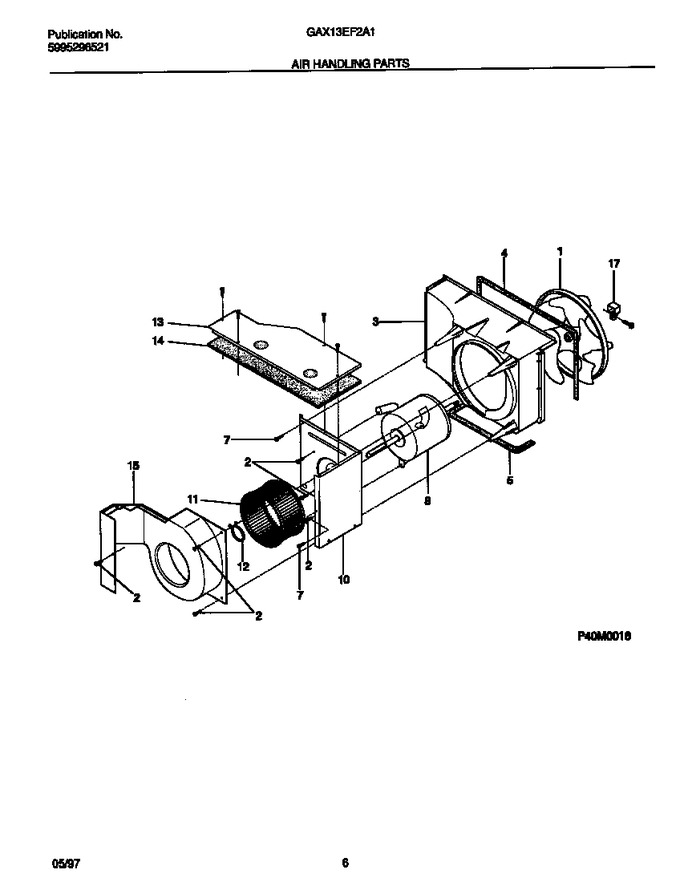

Diagram for GAX13EF2A1
