01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts

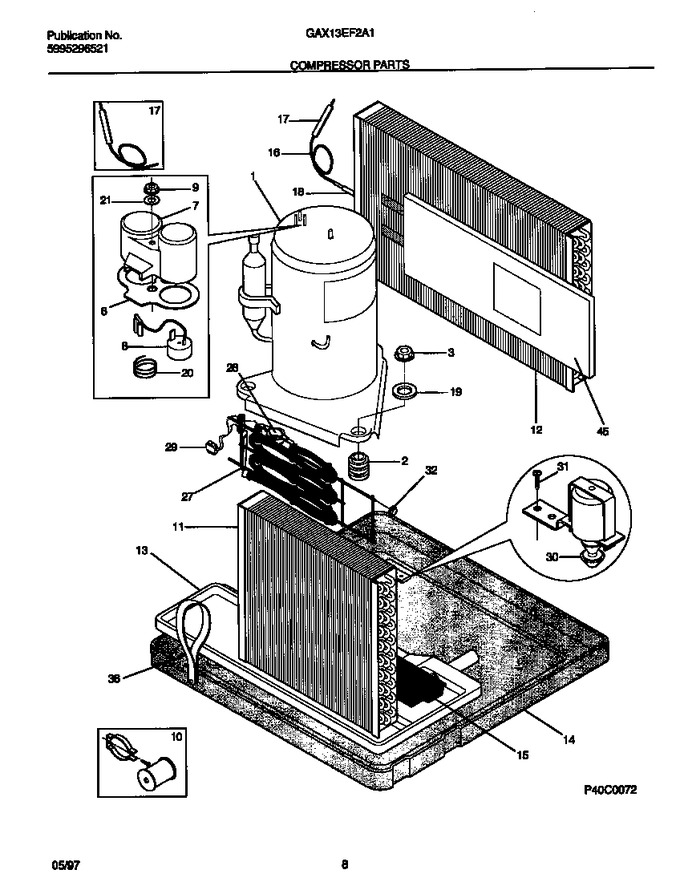

05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303322099 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor, 3 |
|
- | |||||
| 3 | 5308006948 | Nut, Compressor, (3) |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 5303211011 | Cover-terminal |
|
- | |||||
| 8 | 5303322098 | Overload Protector |
|
- | |||||
| 9 | 5303301734 | Nut-cover |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 309610101 | Evaporator |
|
- | |||||
| 12 | 3206086 | Condenser |
|
- | |||||
| 13 | 5303306447 | Tray-evaporator |
|
- | |||||
| 14 | 5303322210 | Base |
|
- | |||||
| 15 | 309612301 | Shield-heater |
|
- | |||||
| 16 | 5308017253 | Capillary Tube, Cut-to-size |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 18 | 5303290357 | Strainer |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer-cover |
|
- | |||||
| 27 | 309611802 | Heater |
|
- | |||||
| 28 | 5303016865 | Thermostat-heater |
|
- | |||||
| 29 | 5303322208 | Harness-heater, Unit |
|
- | |||||
| 30 | 3017804 | Valve-drain |
|
- | |||||
| 31 | 5303209503 | Screw-valve |
|
- | |||||
| 32 | 3018695 | Nut-heater |
|
- | |||||
| 36 | 5303303558 | Strap-chassis Pull |
|
- | |||||
| 45 | 5303311100 | Cover-acustic,compressor |
|
- |
