View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

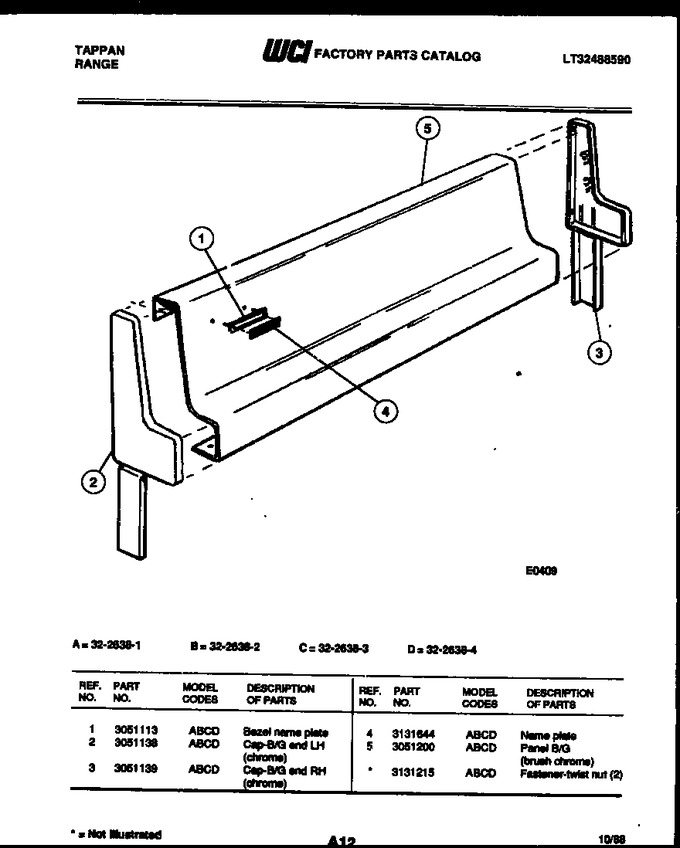

02 - Backguard Parts
03 - Cooktop And Control Parts
04 - Body Parts
05 - Burner Parts
06 - Broiler Drawer Parts
07 - Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 2 | 3051138 | Cap-b/g End Lh (chrome) |
|
- | |||||
| 3 | 3051139 | Cap-b/g End Rh (chrome) |
|
- | |||||
| 4 | 3131644 | Name Plate |
|
- | |||||
| 5 | 3051200 | Panel B/g (brush Chrome) |
|
- | |||||
| *19447 | 3131215 | Fastener, Twist Nut (2) |
|
- |
