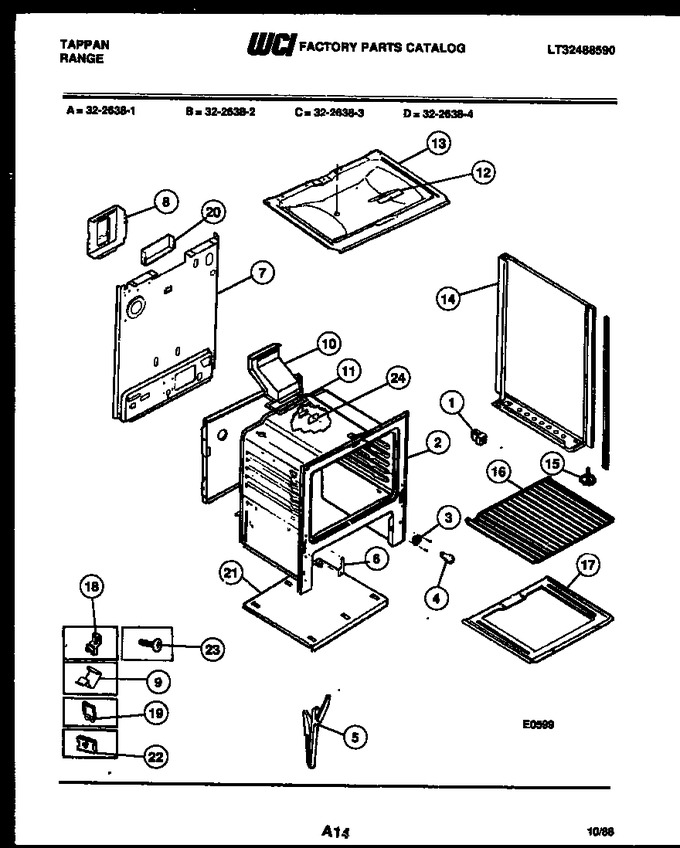

02 - Backguard Parts


03 - Cooktop And Control Parts


04 - Body Parts


05 - Burner Parts


06 - Broiler Drawer Parts


07 - Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	655T188P02		Spacer B/s (8)		Appelez-nous	-
3	662T042P01		Socket-oven Light		Appelez-nous	-
4	374T018P05		Light Bulb		Appelez-nous	-
5	3131569		Channel, Door Hinge (2)		Appelez-nous	-
6	3131570		Cover-hinge Cutout (2)				$ 7.35
7	3051401		Back, Main		Appelez-nous	-
8	655T421F02-18		Shield-rr Wall		Appelez-nous	-
9	145T130P01		Clip, Wire		Appelez-nous	-
10	3131909		Flue		Appelez-nous	-
11	3131355		Gasket, Flue		Appelez-nous	-
12	3131101		Cover, Plate		Appelez-nous	-
14	3201001		Panel B/s Black Rh		Appelez-nous	-
15	636M004P01		Screw, Level (4)		Appelez-nous	-
16	3051220		Rack, Oven (2)		Appelez-nous	-
17	058T036F02-86		Bottom, Oven		Appelez-nous	-
18	145T025P01		Clip, Thermostat				$ 1.76
19	241T047P02		Fastener, Wire		Appelez-nous	-
20	3131191		Cover, Flue		Appelez-nous	-
21	3131180		Base, Broil		Appelez-nous	-
22	241T017P235		Fastener, Hinge		Appelez-nous	-
23	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
24	174T297F01		Cover, Igniter		Appelez-nous	-
14A	3201000		Panel B/s Black Lh		Appelez-nous	-
17A	3131201		Insulation, Oven Wrap (non-illustrated)		Appelez-nous	-
17B	3131246		Insulation, Oven Rack (non-illustrated)		Appelez-nous	-
18A	241T017P255		Fastener, Power Cord		Appelez-nous	-
20A	3131903		Bumper				$ 55.36
20B	694T092F01		Supt-oven Bottom (2) (non-illustrated)		Appelez-nous	-
21A	554T388F02		Plate, Oven Light (non-illustrated)		Appelez-nous	-
21B	3131244		Cover-power Cord, (non-illustrated)		Appelez-nous	-
22A	3131548		Cover, Front Main (non-illustrated)		Appelez-nous	-
23A	174T333P01		Cover, Burner Box (non-illustrated)		Appelez-nous	-
6A	5304534000		Cord, Power (non-illustrated)   (Replaces: 3131425)			Immediately	$ 33.37
