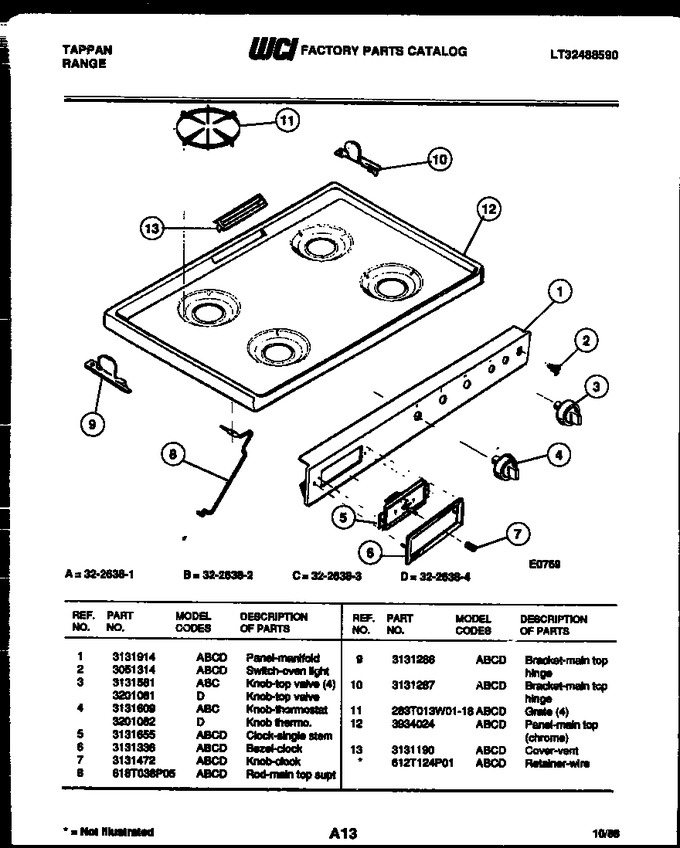

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131914		Panel, Manifold		Appelez-nous	-
2	3051314		Switch, Oven Light		Appelez-nous	-
5	3131655		Clock, Single Stem		Appelez-nous	-
6	3131336		Bezel-clock		Appelez-nous	-
7	3131472		Knob-clock		Appelez-nous	-
8	618T038P05		Rod-main Top Supt.		Appelez-nous	-
9	3131286		Bracket, Main Top Hinge		Appelez-nous	-
10	3131287		Bracket, Main Top Hinge		Appelez-nous	-
11	283T013W01-18		Grate (4)		Appelez-nous	-
12	3934024		Panel, Main Top (chrome)		Appelez-nous	-
13	3131190		Cover-vent		Appelez-nous	-
*19448	612T124P01		Retainer - Wire		Appelez-nous	-
3A	3201081		Knob-top Valve		Appelez-nous	-
4A	3201082		Knob-thermo.		Appelez-nous	-
