Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131142 Extrusion Channel (2) Appelez-nous -
2 3131208 Insulation, Oven Door Appelez-nous -
3 3051152 Glass, Front Appelez-nous -
4 3131345 Handle Appelez-nous -
5 3131393 Liner, Oven Door Appelez-nous -
6 3051225 Seal, Non Sk Door Appelez-nous -
7 3131266 Shield, Wool Appelez-nous -
8 3131323 Support, Glass (2) Appelez-nous -
9 3131128 Trim, Oven Door Appelez-nous -
10 3131213 Screw, Handle (2) Appelez-nous -
11 241T017P240 Fastener, Spacer (6) Appelez-nous -
12 3051374 Fastener, Spacer (3) Appelez-nous -
13 3934033 Seal, Foam Appelez-nous -
14 276T088P13 Glass, Oven Door (rear) Appelez-nous -
15 3131253 Clip, Retainer Appelez-nous -
16 3131207 Cover, Door Liner Appelez-nous -
17 3016755 Cap, End Appelez-nous -
13A 3131573 Screw (3) (non-illustrated) Appelez-nous -
13B 636T143P01 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

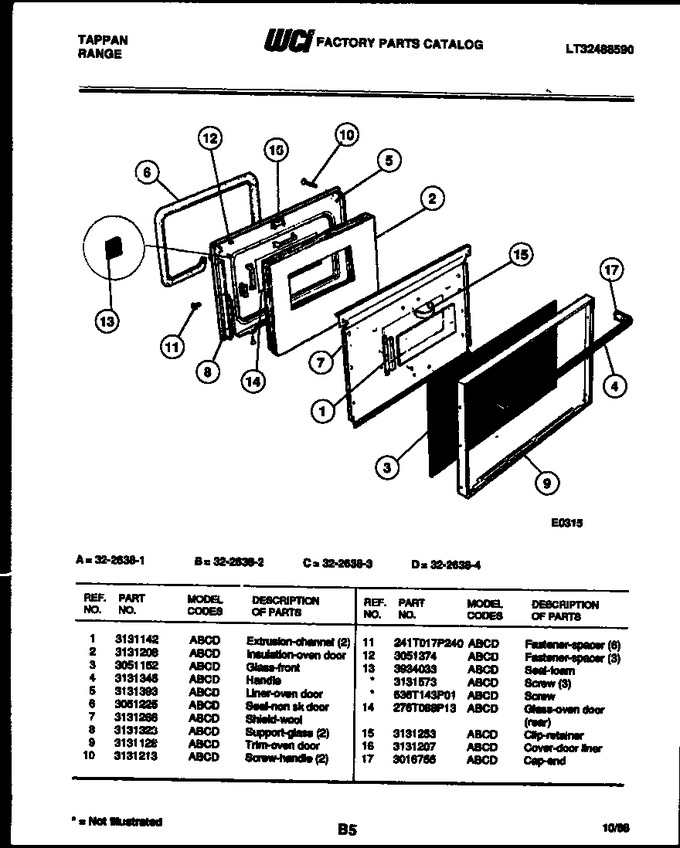

Diagram for 32-2638-00-04
