SELECT A DIAGRAM

01 - Cabinet, Literature

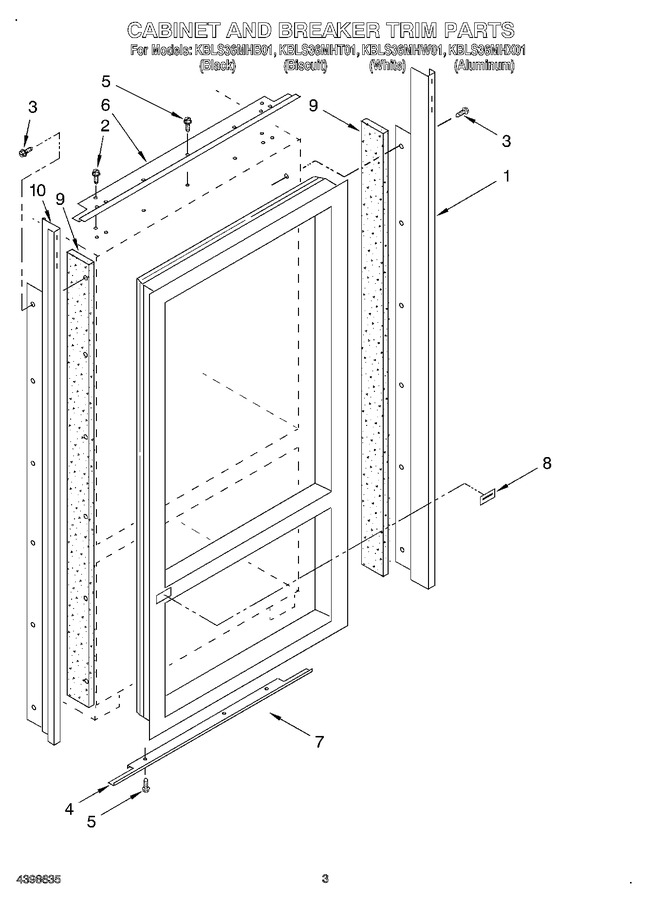

02 - Cabinet And Breaker Trim


03 - Top Grille And Unit Cover


04 - Liner


05 - Control Panel


06 - Refrigerator Shelf


07 - Freezer Door And Basket


08 - Refrigerator Door


09 - Upper Unit


10 - Lower Unit And Tube


11 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2006211		Cabinet Trim, Right Side (black)		Appelez-nous	-
1	2006212		Cabinet Trim, Right Side (biscuit)		Appelez-nous	-
1	2006210		Cabinet Trim, Right Side (white)		Appelez-nous	-
1	2006209		Cabinet Trim, Right Side (aluminum)		Appelez-nous	-
2	2003857		Screw		Appelez-nous	-
3	487246		Repair, Screw		Appelez-nous	-
3	WP1163283		Screw   (Replaces: 1163283)				$ 6.47
4	2209073		Cabinet, Trim (bottom)		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 12.62
6	2003645		Cabinet, Trim Top		Appelez-nous	-
7	2005786		Breaker Trim		Appelez-nous	-
8	2005782		Cover, Hinge				$ 12.04
9	2005925		Seal, Side Trim				$ 83.72
10	2006213		Cabinet Trim, Left Side (aluminum)		Appelez-nous	-
10	2006215		Cabinet Trim, Left Side (black)		Appelez-nous	-
10	2006216		Cabinet Trim, Left Side (biscuit)		Appelez-nous	-
10	2006214		Cabinet Trim, Left Side (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
