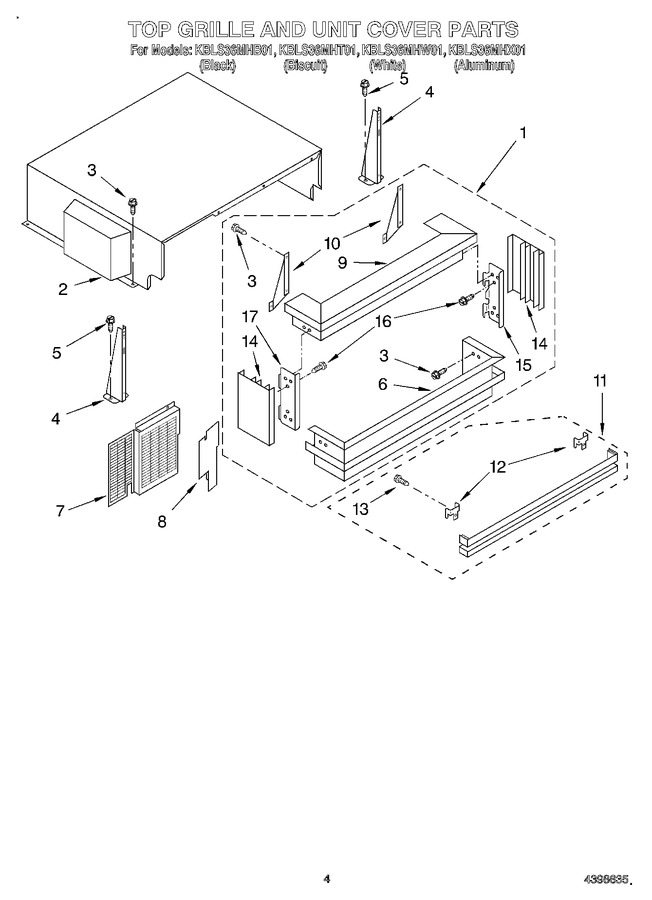

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2006173		Top Grille Assembly (biscuit)		Appelez-nous	-
1	2006165		Top Grille Assembly (white)		Appelez-nous	-
1	2006159		Top Grille Assembly (aluminum)		Appelez-nous	-
1	2006169		Top Grille Assembly (black)		Appelez-nous	-
2	2005549		Cover, Unit		Appelez-nous	-
3	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 14.99
6	2006168		Trim-lower, Panel (white)		Appelez-nous	-
6	2006164		Trim-lower, Panel (aluminum)		Appelez-nous	-
6	2006176		Trim-lower, Panel (biscuit)		Appelez-nous	-
6	2006172		Trim-lower, Panel (black)		Appelez-nous	-
7	2005534		Guard, Compressor Wiring		Appelez-nous	-
8	2006440		Baffle-air, Condenser		Appelez-nous	-
9	2006174		Trim-top, Panel (biscuit)		Appelez-nous	-
9	2006166		Trim-top, Panel (white)		Appelez-nous	-
9	2006170		Trim-top, Panel (black)		Appelez-nous	-
9	2006162		Trim-top, Panel (aluminum)		Appelez-nous	-
10	2005485		Bracket, Trim Panel		Appelez-nous	-
11	2006195		Louver, Vent (black)		Appelez-nous	-
11	2006193		Louver, Vent (aluminum)		Appelez-nous	-
11	2006194		Louver, Vent (white)		Appelez-nous	-
11	2006196		Louver, Vent (biscuit)		Appelez-nous	-
12	2005483		Louver, Bracket		Appelez-nous	-
13	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
14	2006175		Trim-side, Panel (biscuit)		Appelez-nous	-
14	2006171		Trim-side, Panel (black)		Appelez-nous	-
14	2006163		Trim-side, Panel (aluminum)		Appelez-nous	-
14	2006167		Trim-side, Panel (white)		Appelez-nous	-
15	2006161		Bracket-panel, Right Side		Appelez-nous	-
16	WP3196170		Screw   (Replaces: 3196170)				$ 6.47
17	2006160		Bracket-panel, Left Side		Appelez-nous	-
