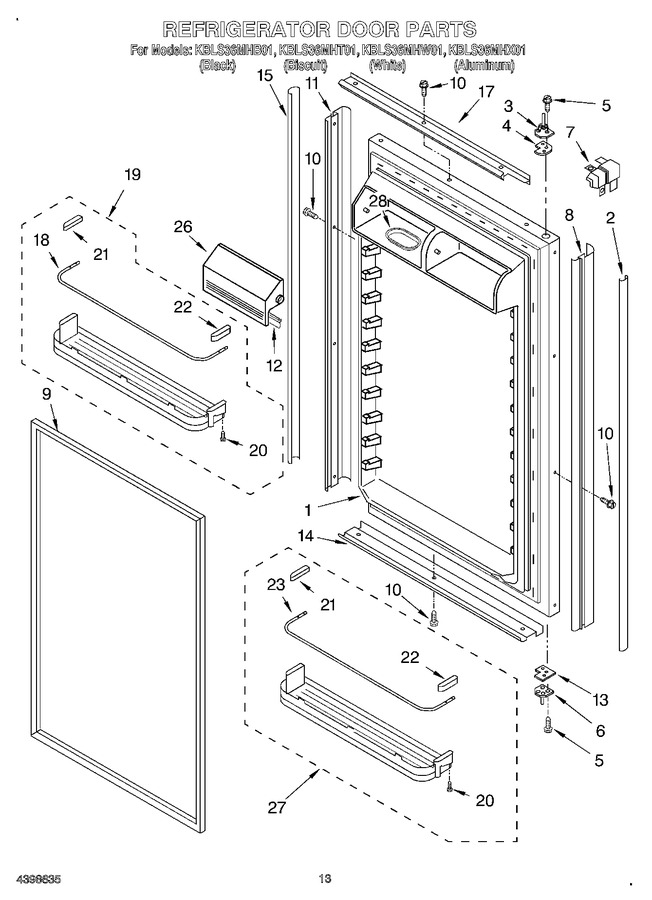

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2005168		Refrigerator Door (includes Item 9)		Appelez-nous	-
2	2006338		Cover-trim, Handle (white)		Appelez-nous	-
2	2006341		Cover-trim, Handle (black)		Appelez-nous	-
2	2006340		Cover-trim, Handle (biscuit)		Appelez-nous	-
2	2006337		Cover-trim, Handle (aluminum)		Appelez-nous	-
3	2005171		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-hinge, Top		Appelez-nous	-
5	W11474472		Screw, 10-32 X .750   (Replaces: 489282)			Immediately	$ 7.22
6	2003985		Hinge Assembly, Bottom		Appelez-nous	-
7	2207457		Corner Trim (aluminum)				$ 48.96
7	2006273		Trim, Corner (black)		Appelez-nous	-
7	2006272		Trim, Corner (biscuit)		Appelez-nous	-
7	2006270		Trim, Corner (white)				$ 170.06
8	2005859		Trim-door, Side (aluminum)		Appelez-nous	-
8	2006277		Trim-door, Side (black)		Appelez-nous	-
8	2006276		Trim-door, Side (biscuit)		Appelez-nous	-
8	2005860		Trim-door, Side (white)		Appelez-nous	-
9	2188410		Door Gasket, Magnetic		Appelez-nous	-
10	WP488729		Screw, 8 - 15 X .500   (Replaces: 487052)			Immediately	$ 7.01
11	2005854		Handle, Door (white)		Appelez-nous	-
11	2006300		Handle, Door (black)		Appelez-nous	-
11	2005853		Handle, Door (aluminum)		Appelez-nous	-
11	2006299		Handle, Door (biscuit)		Appelez-nous	-
12	2005982		Gasket (2)		Appelez-nous	-
13	2003982		Spacer-hinge, Bottom		Appelez-nous	-
14	2005863		Trim-door, Bottom (white)		Appelez-nous	-
14	2006286		Trim-door, Bottom (black)		Appelez-nous	-
14	2006285		Trim-door, Bottom (biscuit)		Appelez-nous	-
14	2005862		Trim-door, Bottom (aluminum)		Appelez-nous	-
15	2006336		Cover-trim, Side (black)		Appelez-nous	-
15	2006332		Cover-trim, Side (aluminum)		Appelez-nous	-
15	2006333		Cover-trim, Side (white)		Appelez-nous	-
15	2006335		Cover-trim, Side (biscuit)		Appelez-nous	-
17	2006290		Trim-door, Top (black)		Appelez-nous	-
17	2005865		Trim-door, Top (aluminum)		Appelez-nous	-
17	2005866		Trim-door, Top (white)		Appelez-nous	-
17	2006289		Trim-door, Top (biscuit)		Appelez-nous	-
18	2005482		Tube, Door Shelf		Appelez-nous	-
19	2005417		Shelf, Door (2)		Appelez-nous	-
20	WP681249		Screw, 8-18 X .750   (Replaces: 489276)			Immediately	$ 7.07
21	2005542		End Cap, Left		Appelez-nous	-
22	2005541		End Cap, Right		Appelez-nous	-
23	2006152		Tube, Door Shelf (gallon)		Appelez-nous	-
26	2005419		Door, Utility Bin (2) (includes Item 12)		Appelez-nous	-
27	2006154		Door Shelf, Gallon		Appelez-nous	-
28	2165792		Tray, Butter		Appelez-nous	-
