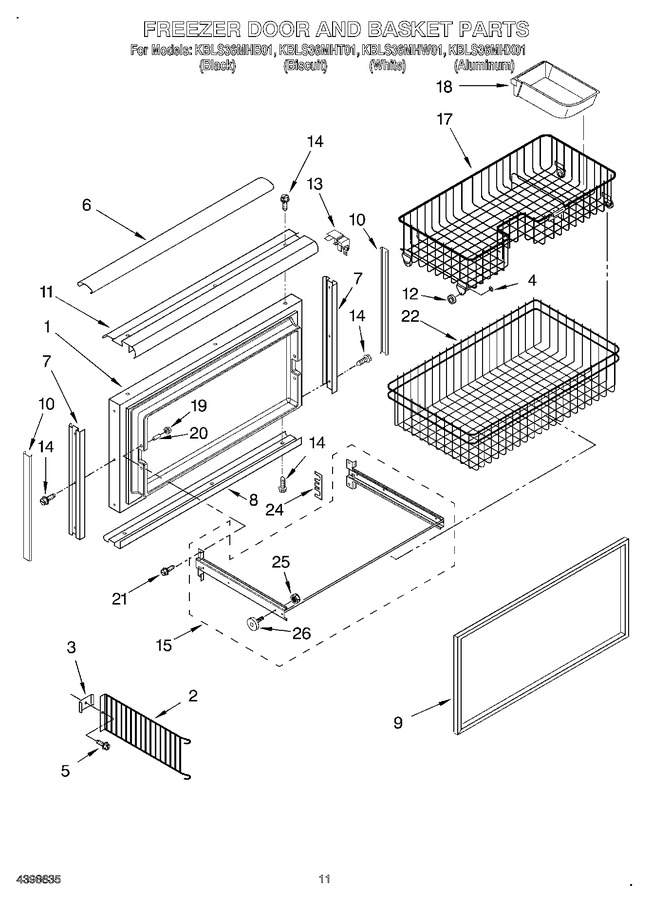

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207525		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525		Divider, Basket		Appelez-nous	-
3	2207429		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 12.03
5	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
6	2006328		Cover-trim, Handle (white)		Appelez-nous	-
6	2006327		Cover-trim, Handle (aluminum)		Appelez-nous	-
6	2006330		Cover-trim, Handle (biscuit)		Appelez-nous	-
6	2006331		Cover-trim, Handle (black)		Appelez-nous	-
7	2005868		Trim-door, Side (aluminum)		Appelez-nous	-
7	2006304		Trim-door, Side (black)		Appelez-nous	-
7	2006303		Trim-door, Side (biscuit)		Appelez-nous	-
7	2005869		Trim-door, Side (white)		Appelez-nous	-
8	2006279		Trim-door, Bottom (white)		Appelez-nous	-
8	2006282		Trim-door, Bottom (black)		Appelez-nous	-
8	2006281		Trim-door, Bottom (biscuit)		Appelez-nous	-
8	2006278		Trim-door, Bottom (aluminum)		Appelez-nous	-
9	2188411		Door Gasket, Magnetic		Appelez-nous	-
10	2006323		Cover-trim, Side (white)		Appelez-nous	-
10	2006322		Cover-trim, Side (aluminum)		Appelez-nous	-
10	2006326		Cover-trim, Side (black)		Appelez-nous	-
10	2006325		Cover-trim, Side (biscuit)		Appelez-nous	-
11	2006292		Handle, Door (black)		Appelez-nous	-
11	2005188		Handle, Door (aluminum)		Appelez-nous	-
11	2005392		Handle, Door (white)		Appelez-nous	-
11	2006291		Handle, Door (biscuit)		Appelez-nous	-
12	W11214482		Roller   (Replaces: 2204542)				$ 86.60
13	2006272		Trim, Corner (biscuit)		Appelez-nous	-
13	2006273		Trim, Corner (black)		Appelez-nous	-
13	2006270		Trim, Corner (white)				$ 170.06
13	2207457		Trim, Corner (aluminum)				$ 48.96
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.01
15	2207533		Bracket, Assembly Freezer Basket		Appelez-nous	-
17	2005376		Basket, Upper		Appelez-nous	-
18	2174124		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 9.58
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2006244		Basket, Freezer Lower		Appelez-nous	-
24	2207576		Spacer		Appelez-nous	-
25	2207415		Nut				$ 12.03
26	2207550		Roller		Appelez-nous	-
