SELECT A DIAGRAM

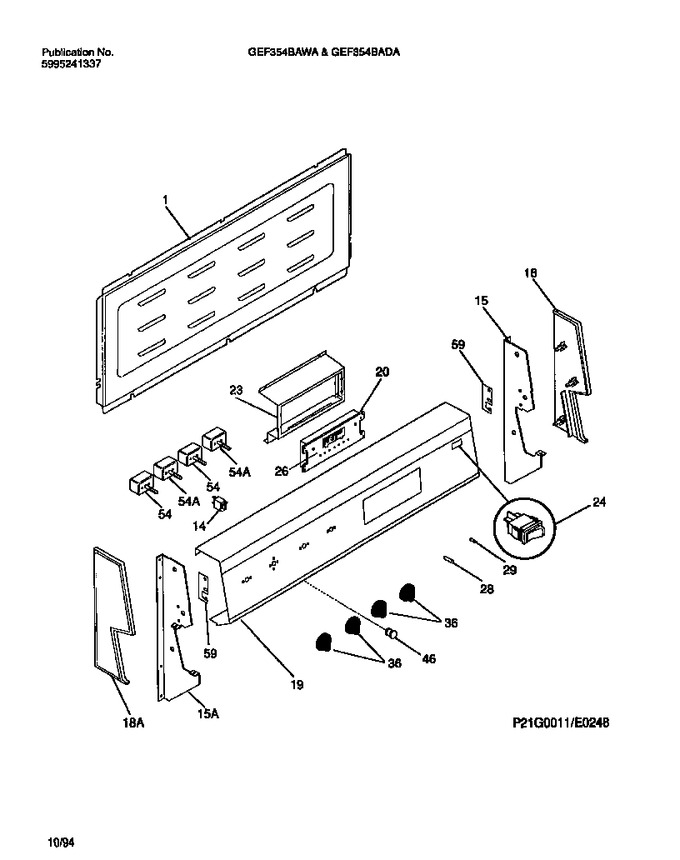

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Shield-backguard, Rear Wall		Appelez-nous	-
14	3206088		Light/lamp-indicator, 125 V		Appelez-nous	-
15	08015966		Support-backguard, Rh		Appelez-nous	-
18	08012554		End Cap, Rh		Appelez-nous	-
19	316055407		Panel-control, Metal		Appelez-nous	-
20	5303270370		Clock/timer, Electronic		Appelez-nous	-
23	5303211845		Bracket-clock/timer Mtg		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
26	316058300		Glass-eoc		Appelez-nous	-
28	3204586		Button-clock, Black		Appelez-nous	-
29	3204590		Knob-eoc Control, Black		Appelez-nous	-
36	316019117		Knob-control		Appelez-nous	-
46	316058400		Lens-light / Lamp, Indicator, Amber		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
59	5308012538		Bracket-hinge Mtg, Bkgd		Appelez-nous	-
15A	5308015967		Support-backguard, Lh		Appelez-nous	-
18A	08012555		End Cap, Lh		Appelez-nous	-
54A	5301313767		Switch-8`` Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
