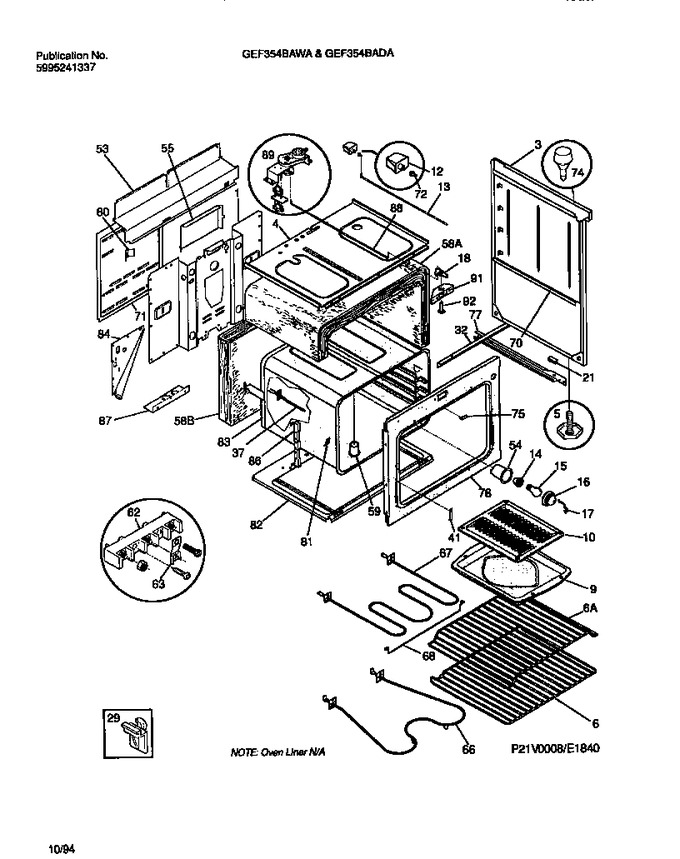

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205757 | Back-main |
|
- | |||||
| 3 | 5308012527 | Pnael-bodyside, White, Rh |
|
- | |||||
| 4 | 5303292692 | Burner Box |
|
- | |||||
| 5 | 5303205540 | Screw-leveling |
|
- | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 9 | 5303292688 | Pan-broiler |
|
- | |||||
| 10 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 12 | W10169313 | Switch-latch (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 13 | 08007445 | Rod-light Switch |
|
- | |||||
| 14 | 538011085 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 5303205904 | Retainer-glass |
|
$ 7.67 | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 21 | 3051653 | Spacer-bodyside |
|
- | |||||
| 29 | 3051654 | Guide-drawer, Front |
|
- | |||||
| 32 | 5303207391 | Support-subtop |
|
- | |||||
| 37 | 5303208888 | Probe-oven Temp |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 53 | 3206095 | Shield-wire |
|
- | |||||
| 54 | 3051511 | Housing-oven Light |
|
$ 60.22 | |||||
| 55 | 3051634 | Shield-flue |
|
- | |||||
| 59 | 08012574 | Tube-oven Vent |
|
- | |||||
| 62 | 5303051099 | Nut, Hex, 10-32 (non-illustrated) |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 63 | 5301145190 | Plate=ground Strap |
|
- | |||||
| 66 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 67 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 68 | 3205756 | Support-element |
|
- | |||||
| 70 | 3051632 | Shield-insualtion |
|
- | |||||
| 71 | 5303051856 | Shield-rear Wall, Lower |
|
- | |||||
| 72 | 08007444 | Cover-rod End |
|
- | |||||
| 74 | 5308003107 | Spacer-cooktop |
|
- | |||||
| 75 | 3202082 | Cover-oven Seam |
|
- | |||||
| 76 | 316042101 | Front Frame-oven |
|
- | |||||
| 77 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 80 | 3016281 | Spring-oven Rear |
|
- | |||||
| 81 | 3201632 | Spacer-oven |
|
- | |||||
| 82 | 3206275 | Shield, Oven Bottom |
|
- | |||||
| 83 | 5303293178 | Liner-oven Assy |
|
- | |||||
| 83 | 3016334 | Plug-button, Liner, (non-illustrated) |
|
- | |||||
| 84 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 87 | 3203574 | Bracket-cable Mtg |
|
- | |||||
| 88 | 3051649 | Rod-latch, Auto |
|
- | |||||
| 89 | 5303269766 | Motor-latch/lock |
|
- | |||||
| 91 | 3051647 | Housing-door Latch |
|
- | |||||
| 92 | 5308012004 | Stud-axie |
|
$ 8.29 | |||||
| 3A | 5308012528 | Panel-bodyside, White, Lh, (non-illustrated) |
|
- | |||||
| 58A | 3203029 | Insulation, Oven Wrap |
|
- | |||||
| 58B | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 5A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- | |||||
| 6A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 77A | 3051652 | Rail-drawer Lh, (non-illustrated) |
|
- | |||||
| 84A | 3017481 | Gusset-rear, Rh, (non-illustrated) |
|
- |
