SELECT A DIAGRAM

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

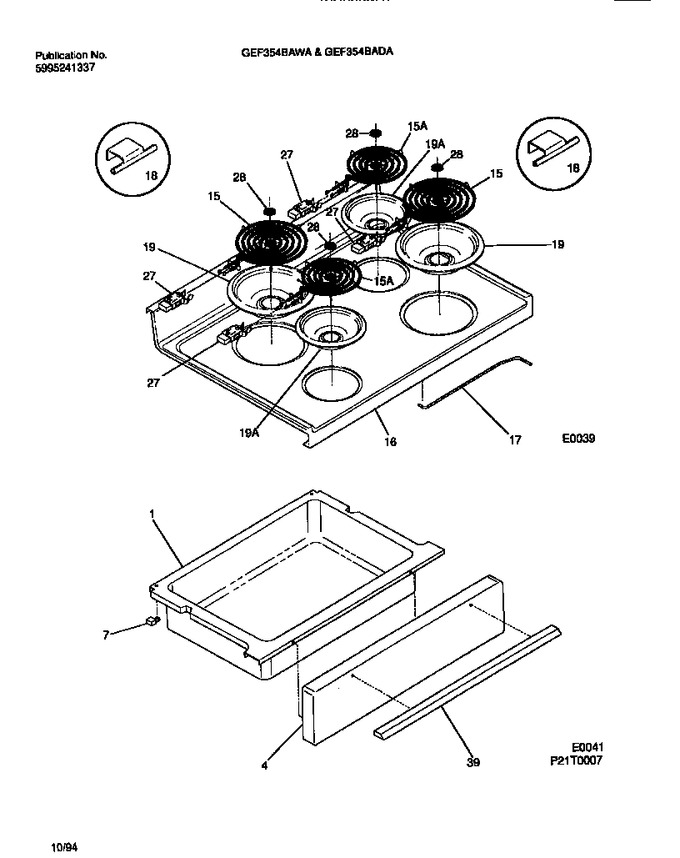

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308011051		Drawer-utility		Appelez-nous	-
4	5308011056		Panel-drawer, White		Appelez-nous	-
7	5303209487		Glide-drawer, Rear		Appelez-nous	-
15	5308011964		Element-surface, Large/8 Inch				$ 209.08
16	5303211000		Main Top, White		Appelez-nous	-
17	5303211120		Rod-maintop Support, Rh		Appelez-nous	-
17	5303211119		Rod-maintop Support, Rh		Appelez-nous	-
18	08012537		Hinge Pin		Appelez-nous	-
19	316048413		Pan-surface Element, Lage/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303912668		Terminal Block Kit, Surface Element		Appelez-nous	-
28	3017801		Medallion, Stinless Steel, Surf Elem		Appelez-nous	-
39	316019504		Handle-drawer, Black		Appelez-nous	-
15A	5303015210		Element-surface, Small/6 Inch		Appelez-nous	-
17A	5303211120		Rod-maintop Support, Lh, (non-illustrated)		Appelez-nous	-
19A	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
1A	3051050		Screw-shoulder, (non-illustrated)				$ 12.29

    View Diagram in Separate Window       Print Part List
