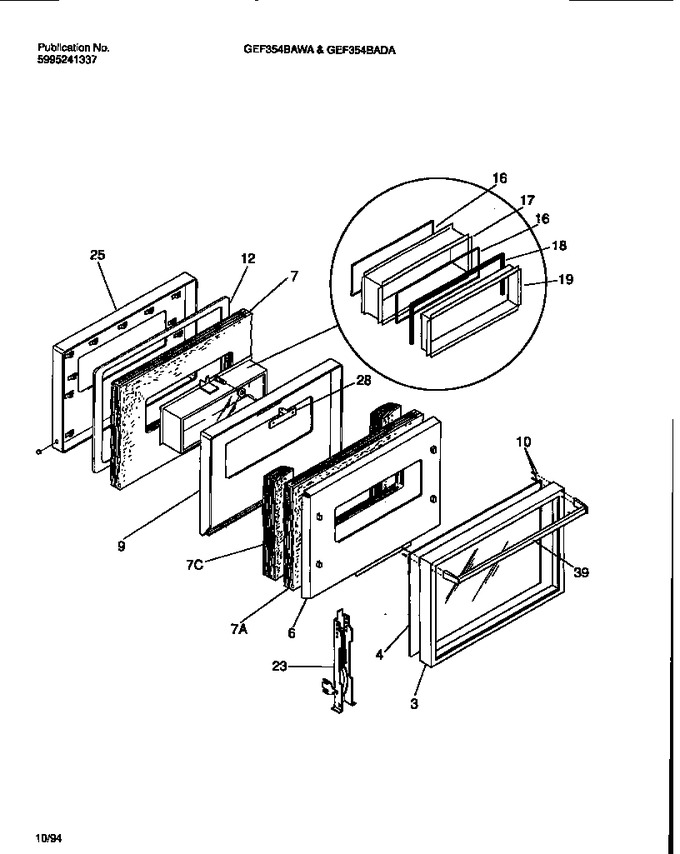

| 3 | 3206077 | Trim-oven Door, Black |
|
- | |||||
| 4 | 5308012546 | Glass-oven Door, Black, Outer |
|
- | |||||
| 6 | 5303212549 | Shield-air Wash |
|
- | |||||
| 7 | 5303212545 | Insulation-baffle, Oven Door |
|
- | |||||
| 9 | 316041903 | Liner-oven Door |
|
- | |||||
| 10 | 5303051860 | Scre-handle Mtg, Fit Hd Sqdr, 6-32 X 1/2, (4) |
|
- | |||||
| 12 | 3206078 | Seal-oven Door |
|
- | |||||
| 16 | 5303209512 | Glass-oven Door, Heat Barrier, (2) |
|
$ 150.41 | |||||
| 17 | 5303212548 | Spacer-glass |
|
- | |||||
| 18 | 5303212544 | Seal-window |
|
- | |||||
| 19 | 5303212552 | Collar-glass Mtg |
|
- | |||||
| 23 | 5303207589 | Hinge-oven Door, Assembly |
|
- | |||||
| 25 | 5303292734 | Liner-door Baffle |
|
- | |||||
| 28 | 5301167830 | Strike Plate |
|
- | |||||
| 39 | 5303207187 | Handle-door, Oven |
|
- | |||||
| 7A | 5303212547 | Insulation-liner, Oven Door |
|
- | |||||
| 7C | 5303212546 | Insulation, Oven Door, (2) |
|
- | |||||
| 9A | 5303269859 | Screw, 8-18 X 1/2, Black (non-illustrated) |
|
- |
