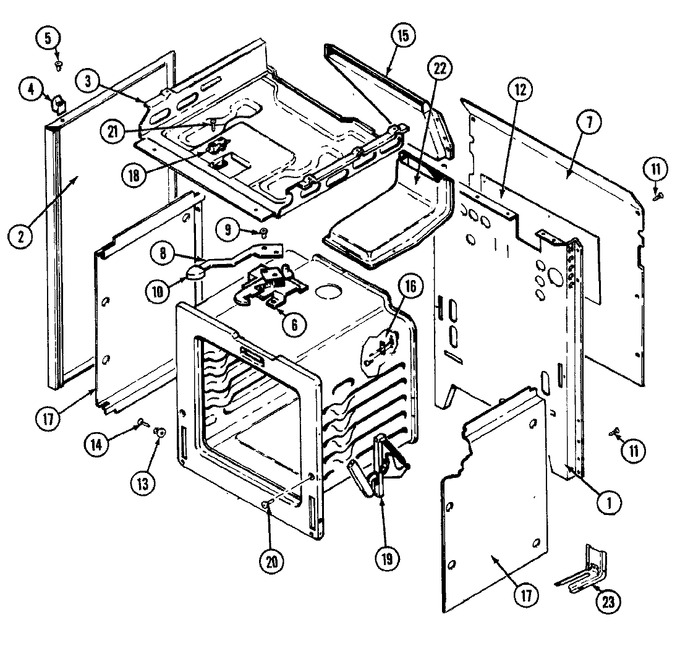

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F179-80		Back, Main	01	Appelez-nous	-
2	2618F099-71		Panel, Side (wht)	01	Appelez-nous	-
3	4011F210-80		Bottom, Burner Box	01	Appelez-nous	-
4	8010P088-60		Spacer, Main Top (rt)	01	Appelez-nous	-
4	8010P087-60		Spacer, Main Top (lt)	01	Appelez-nous	-
5	WP74004005		Screw   (Replaces: 7118P013-60)	01			$ 6.95
6	8002P024-60		Latch Assy.	01	Appelez-nous	-
6	4804F028-60		Insulation, Latch Assy.	01	Appelez-nous	-
7	4005F331-51		Cover, Main Back Wire	01	Appelez-nous	-
8	8009P015-60		Lever Lock	01	Appelez-nous	-
9	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	01			$ 4.29
10	7112P003-60		Clip, Latch Handle	01	Appelez-nous	-
10	7701P089-60		Handle, Latch (wht)	01	Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
12	3604F165-51		Shield, Flue (lower)	01	Appelez-nous	-
13	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	01			$ 7.07
14	W11772394		Screw   (Replaces: 7101P300-60)	01		Immediately	$ 10.94
15	4022W005-19		Extension, Flue Box	01	Appelez-nous	-
16	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	01		Immediately	$ 41.01
17	3804F103-51		Retainer, Insulation (side)	01	Appelez-nous	-
18	7403P228-60		Switch, Door Latch	01	Appelez-nous	-
18	3801F267-45		Bracket, Switch	01	Appelez-nous	-
19	7106P049-60		Hinge, Door	01	Appelez-nous	-
20	WP4159193		Screw   (Replaces: 7101P115-60)	01			$ 4.29
21	7101P031-60		Screw	01	Appelez-nous	-
22	4006W113-45		Box, Vent	01	Appelez-nous	-
23	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	01		Immediately	$ 4.69
23	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	01			$ 26.33
24	7401P037-60		Block, Terminal	01	Appelez-nous	-
24	5185D251-60		Harness, Pedestal	01	Appelez-nous	-
