01 - Body
02 - Control Panel

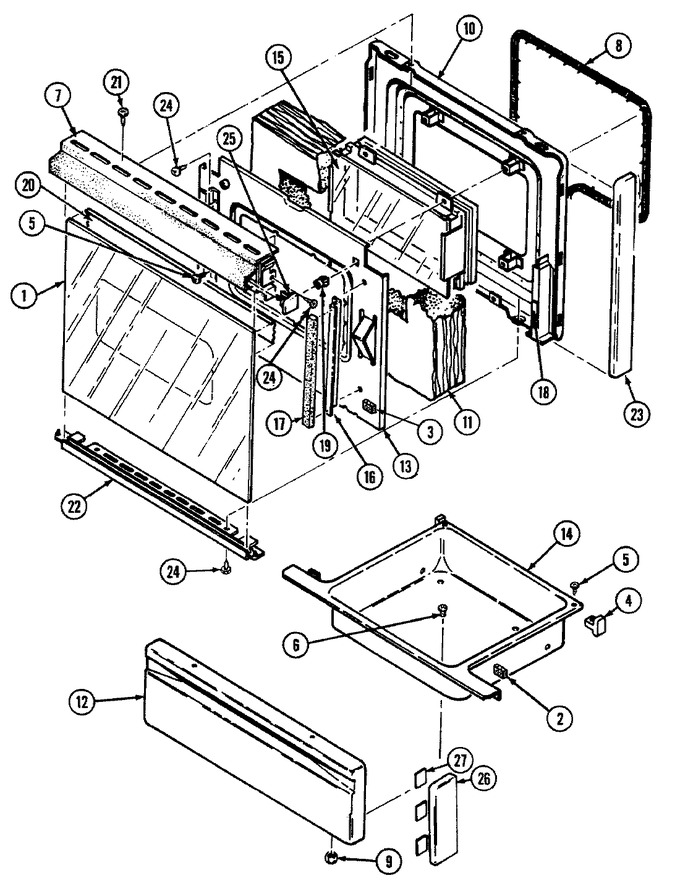

03 - Door/drawer (3468vtv)
04 - Gas Controls
05 - Oven/base
06 - Top Assembly/control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P328-60 | Glass, Door (wht) | 01 |
|
- | ||||
| 2 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 01 |
|
$ 11.95 | ||||
| 3 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 01 |
|
$ 9.29 | ||||
| 5 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 7 | 7701P106-60 | Handle, Door (wht) | 01 |
|
- | ||||
| 8 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 01 |
|
Immediately | $ 77.61 | |||
| 9 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 10 | 2402W202-19 | Lining, Door | 01 |
|
- | ||||
| 11 | 4804F034-60 | Insulation, Door | 01 |
|
- | ||||
| 12 | 2416F038-62 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 12 | 2404F030-51 | Lining, Drawer Panel | 01 |
|
- | ||||
| 13 | 3601F232-45 | Baffle, Door | 01 |
|
- | ||||
| 14 | 3405F014-80 | Drawer, Storage | 01 |
|
- | ||||
| 15 | 7907P014-60 | Glass Asy, Oven Door | 01 |
|
- | ||||
| 16 | 3818F052-51 | Channel, Air | 01 |
|
- | ||||
| 17 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 19 | 8010P075-60 | Spacer | 01 |
|
- | ||||
| 20 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 21 | WP98008544 | Screw (wht) (Replaces: 7101P308-60) | 01 |
|
$ 11.89 | ||||
| 22 | 7744P103-60 | Trim, Bottom (wht) | 01 |
|
- | ||||
| 23 | 7744P065-60 | End Cap, Door (wht) | 01 |
|
- | ||||
| 24 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 25 | 7744P075-60 | End Cap (rt) | 01 |
|
- | ||||
| 25 | 7744P076-60 | End Cap (lt) | 01 |
|
- | ||||
| 26 | 7744P067-60 | End Cap, Drawer (wht) | 01 |
|
- | ||||
| 27 | 8270P098-60 | Tape | 01 |
|
$ 5.02 |
