01 - Body
02 - Control Panel
03 - Door/drawer (3468vtv)
04 - Gas Controls
05 - Oven/base
06 - Top Assembly/control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

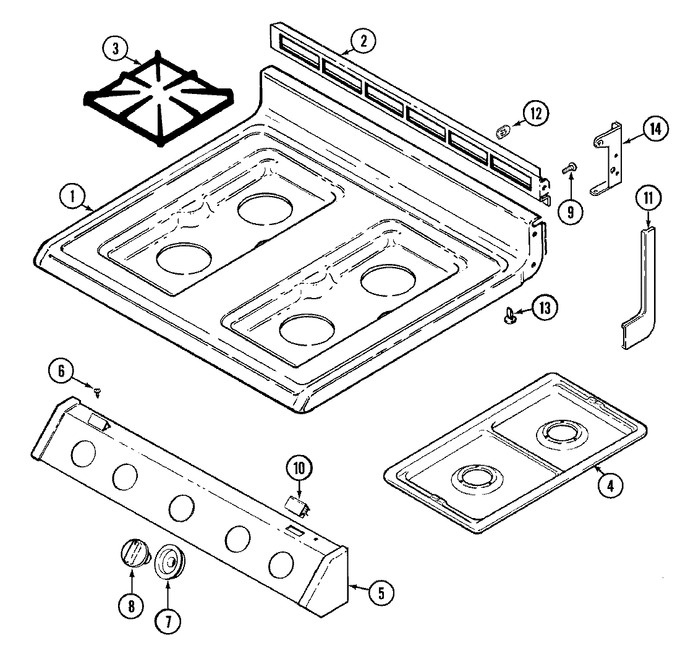

| 1 | 2001W085-81 | Top, Main (wht) | 01 |
|
- | ||||
| 2 | 3608F042-26 | Trim, Vent (dark Gray) | 01 |
|
- | ||||
| 3 | 2003W027-26 | Grate (gry) | 01 |
|
- | ||||
| 4 | 7725P021-60 | Bowl, Drip (dbl-chr) | 01 |
|
$ 32.25 | ||||
| 5 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 5 | 7712P170-60 | Panel, Manifold (wht) | 01 |
|
- | ||||
| 6 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 7 | W10856847 | Bezel, Knob (wht) (Replaces: 7740P034-60) | 01 |
|
$ 46.82 | ||||
| 8 | WP74003769 | Knob, Valve (wht) (Replaces: 7733P083-60) | 01 |
|
$ 15.24 | ||||
| 9 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 01 |
|
$ 11.92 | ||||
| 10 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 11 | 7746P032-60 | End Cap, Top (rt-wht) | 01 |
|
- | ||||
| 11 | 8270P095-60 | Tape, Double Sided | 01 |
|
- | ||||
| 11 | 7746P033-60 | End Cap, Top (lt-wht) | 01 |
|
- | ||||
| 12 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 13 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 14 | 8114P348-60 | Cover, Hinge Support | 01 |
|
- | ||||
| 14 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 14 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- |
