SELECT A DIAGRAM
01 - Body

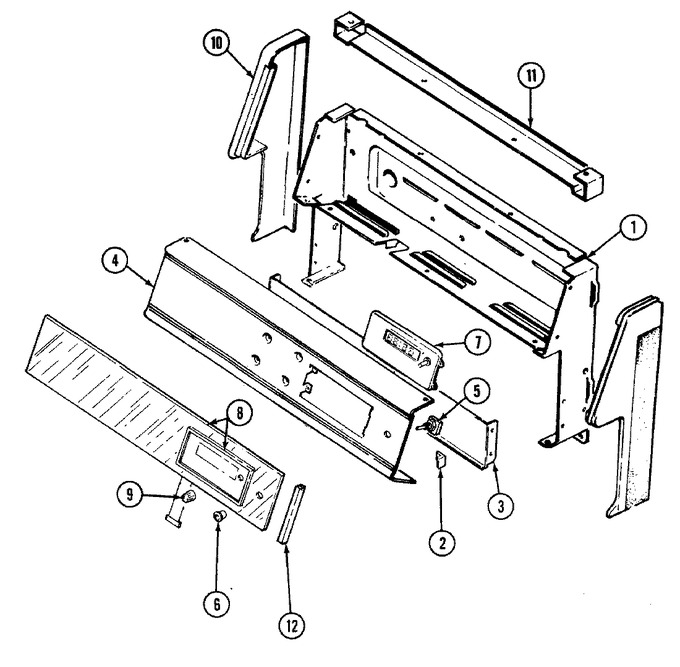

02 - Control Panel
03 - Door/drawer (3468vtv)
04 - Gas Controls
05 - Oven/base
06 - Top Assembly/control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 2 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 3 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 3 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 4 | 7703P503-60 | Panel, Control (wht) | 04 |
|
- | ||||
| 4 | 7703P503-60 | Panel, Control (wht) | 01 |
|
- | ||||
| 4 | 7703P389-60 | Panel, Control (wht) | 03 |
|
- | ||||
| 4 | 7101P348-60 | Screw (wht) | 01 |
|
- | ||||
| 5 | 7403P204-60 | Switch, Push (wht) | 01 |
|
- | ||||
| 6 | 7214P023-60 | Sleeve, Switch (wht) | 01 |
|
- | ||||
| 7 | 7601P208-60CP | Clock (Replaces: 7601P208-60) | 04 |
|
- | ||||
| 7 | 7428P012-60 | Relay | 03 |
|
- | ||||
| 7 | 7601P211-60 | Clock, ``t`` Gas | 03 |
|
- | ||||
| 7 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 7 | 7601P208-60CP | Clock (Replaces: 7601P208-60) | 01 |
|
- | ||||
| 8 | 4851S020-59 | Panel, Control Assy | 04 |
|
- | ||||
| 8 | 4851S018-59 | Panel, Control Assy | 03 |
|
- | ||||
| 8 | 4851S020-59 | Panel, Control Assy | 01 |
|
- | ||||
| 9 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 01 |
|
$ 12.13 | ||||
| 10 | 7726P075-60 | End Cap, Ctrl Panel (rt-wht) | 01 |
|
- | ||||
| 10 | 7726P076-60 | End Cap (lt-wht) | 01 |
|
- | ||||
| 11 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 12 | 7720P161-60 | Trim, Retainer (wht) | 01 |
|
- | ||||
| 13 | 5170P123-60 | Harness Sensor | 03 |
|
- | ||||
| 13 | 5170P160-60 | Harness, Sensor & Lock | 01 |
|
- | ||||
| 13 | 5170P124-60 | Harness Ctrl To Relay | 03 |
|
- | ||||
| 13 | 5125A354-60 | Wires, Loose | 01 |
|
- | ||||
| 13 | 5125A320-60 | Wires, Loose | 03 |
|
- | ||||
| 13 | 5180D152-60 | Harness, Control Panel | 01 |
|
- | ||||
| 13 | 5180D142-60 | Harness, Wire Clock | 03 |
|
- | ||||
| 14 | 8113P046-60 | Manual, Use & Care | 01 |
|
- | ||||
| 14 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
