SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer (ser. Pre. 10-14)


04 - Door/drawer (ser. Pre. 15)


05 - Gas Controls


06 - Oven/base

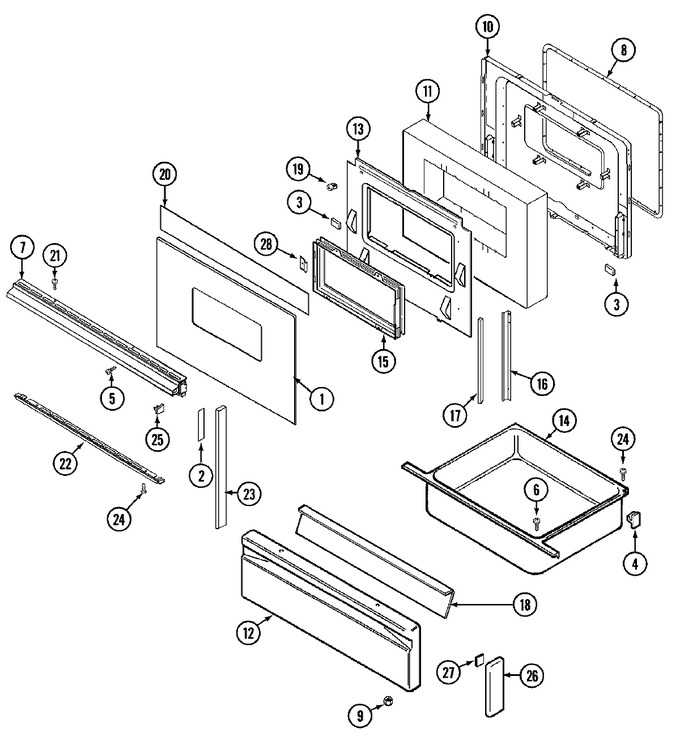

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)	10	Appelez-nous	-
2	8270P093-60		Tape, End Cap	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	8004P026-60		Support, Drawer (rear)	10			$ 9.29
5	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	10		Immediately	$ 7.69
5	7103P045-60		Nut, Nylon	10	Appelez-nous	-
6	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
7	7701P103-60		Handle, Door (blk)	10	Appelez-nous	-
8	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
9	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
10	2402W209-19		Lining, Door	10	Appelez-nous	-
11	4804F051-60		Insulation, Door	10	Appelez-nous	-
12	2416F038-65		Panel, Drawer (blk)	10	Appelez-nous	-
12	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
13	3601F236-51		Baffle, Door	10	Appelez-nous	-
14	3405F018-80		Drawer, Storage	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
15	7907P021-60		Window Asy.	10	Appelez-nous	-
16	3818F052-80		Channel, Air	10	Appelez-nous	-
16	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
17	7208P002-60		Seal	10	Appelez-nous	-
18	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
19	7103P045-60		Nut, Nylon	10	Appelez-nous	-
20	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
21	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
22	7744P105-60		Trim, Bottom (blk)----na	10	Appelez-nous	-
23	7744P055-60		End Cap, Oven Door (blk)	10	Appelez-nous	-
24	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
25	7744P076-60		End Cap (lt)	10	Appelez-nous	-
25	7744P075-60		End Cap (rt)	10	Appelez-nous	-
25	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
26	7744P068-60		End Cap (blk)	10	Appelez-nous	-
27	8270P094-60		Tape, Double-sided	10	Appelez-nous	-
28	3805F002-34		Clamp, Window Assy.	10	Appelez-nous	-
28	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98

    View Diagram in Separate Window       Print Part List
