SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (ser. Pre. 10-14)
04 - Door/drawer (ser. Pre. 15)

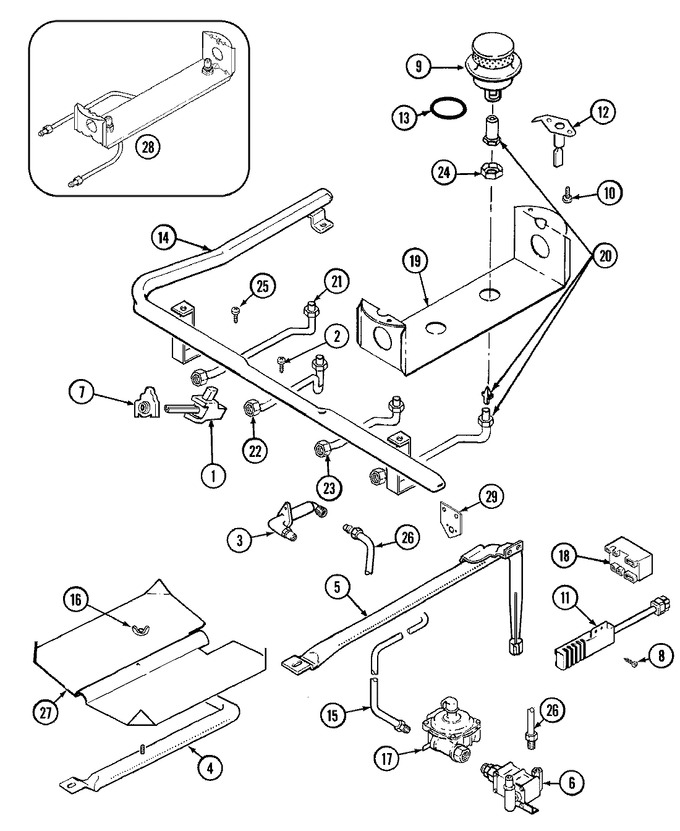

05 - Gas Controls
06 - Oven/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P251-60 | Valve, Top Burner | 10 |
|
- | ||||
| 2 | 7101P044-60 | Screw, Valve | 10 |
|
- | ||||
| 3 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 10 |
|
Immediately | $ 7.69 | |||
| 3 | 7507P088-60 | Fitting, Broil Burner | 10 |
|
- | ||||
| 4 | 3403D024-45 | Burner, Broil | 10 |
|
- | ||||
| 5 | 3403D043-45 | Burner, Bake | 10 |
|
- | ||||
| 5 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 3807F446-45 | Support, Burner | 10 |
|
- | ||||
| 6 | WP74006427 | Valve, Oven (Replaces: 7501P097-60) | 10 |
|
$ 313.44 | ||||
| 7 | WP7403P279-60 | Switch, Igniter (Replaces: 7403P279-60) | 10 |
|
$ 91.89 | ||||
| 8 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 9 | 7101P343-60 | Screw | 10 |
|
- | ||||
| 9 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 10 |
|
Immediately | $ 92.69 | |||
| 10 | WP59002061 | Screw (Replaces: 7101P315-60) | 10 |
|
$ 6.98 | ||||
| 11 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 11 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 10 |
|
Immediately | $ 60.44 | |||
| 11 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (order Sealed Burner- Item No.9) | 10 |
|
- | ||||
| 13 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 10 |
|
Immediately | $ 92.69 | |||
| 14 | 7513P120-60 | Pipe, Manifold | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 7103P130-60 | Nut, Loxit (3/8``) | 10 |
|
$ 8.20 | ||||
| 15 | 3414F103-44 | Tubing, Regulator/pipe (3/8``) | 10 |
|
- | ||||
| 16 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 17 | WP74006429 | Regulator, Pressure (Replaces: 7510P063-60) | 10 |
|
$ 282.77 | ||||
| 18 | 3807F473-51 | Support, Spark Module | 10 |
|
- | ||||
| 18 | 12001596 | Module, Spark (Replaces: 7431P024-60) | 10 |
|
Immediately | $ 85.93 | |||
| 19 | W10124350 | Not Required Part Or See Note Support, Orifice Fitting | 14 |
|
- | ||||
| 19 | 3807F469-45 | Support | 10 |
|
- | ||||
| 20 | 7507P085-60 | Fitting, Orifice (r.r.) | 10 |
|
- | ||||
| 21 | 7507P113-60 | Fitting, Orifice (l.r.) | 10 |
|
- | ||||
| 22 | 7507P084-60 | Fitting, Orifice (l.f. 9,200) | 10 |
|
- | ||||
| 23 | 7507P091-60 | Fitting, Orifice (r.f.) | 10 |
|
- | ||||
| 24 | 7103P119-60 | Palnut | 10 |
|
- | ||||
| 25 | 7101P296-60 | Screw | 10 |
|
- | ||||
| 26 | 3414F102-44 | Tubing, Broil Burner (3/8``) | 10 |
|
- | ||||
| 27 | 3601F217-47 | Baffle, Broil Burner | 10 |
|
- | ||||
| 28 | 5187D034-60 | Orifice Fitting Assembly | 13 |
|
- | ||||
| 28 | 5187D035-60 | Orifice Fitting Assembly | 13 |
|
- | ||||
| 29 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 29 | 3605F186-45 | Plate, Fitting | 10 |
|
- | ||||
| 30 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- | ||||
| 30 | 5120D019-60 | Harness, Spark Module/top | 10 |
|
- | ||||
| 30 | 5140D035-60 | Wires, Igniter | 10 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit) | 10 |
|
- |
