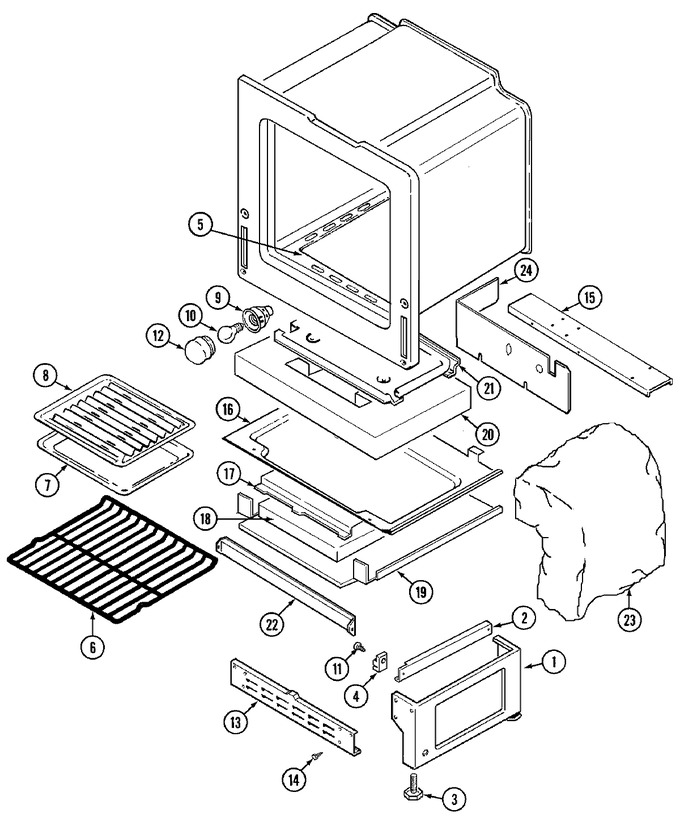

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (ser. Pre. 10-14)
04 - Door/drawer (ser. Pre. 15)
05 - Gas Controls
06 - Oven/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4020W011-80 | Pedestal (sides) | 10 |
|
- | ||||
| 2 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 3 | 7101P306-60 | Leg, Leveling | 10 |
|
- | ||||
| 4 | 74002312 | Support, Drawer | 10 |
|
$ 27.09 | ||||
| 5 | 5504M004-19 | Bottom, Oven Assy. | 10 |
|
- | ||||
| 5 | 3601F229-45 | Baffle, Oven Bottom | 10 |
|
- | ||||
| 6 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 10 |
|
$ 65.15 | ||||
| 7 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 8 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 9 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 10 |
|
Immediately | $ 66.10 | |||
| 10 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 11 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 6.98 | |||
| 12 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 10 |
|
Immediately | $ 71.93 | |||
| 13 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 3807F476-51 | Support, Valve & Regulator | 10 |
|
- | ||||
| 16 | 3804F112-51 | Retainer, Insulation | 10 |
|
- | ||||
| 17 | 3604F204-51 | Shield, Heat | 10 |
|
- | ||||
| 18 | 7002P140-60 | Insulation, Drawer & Shield | 10 |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 3604F205-51 | Shield, Drawer | 10 |
|
- | ||||
| 20 | 4804F014-60 | Insulation, Oven Bottom | 10 |
|
- | ||||
| 21 | 74001651 | Pan, Bake Burner | 10 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 22 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 22 | 3601F208-45 | Baffle, Oven Front | 10 |
|
- | ||||
| 23 | 74001159 | Insulation, Back | 10 |
|
- | ||||
| 23 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 24 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 24 | 4005F429-51 | Cover, Valve | 10 |
|
- | ||||
| 25 | 5185D251-60 | Harness, Pedestal | 10 |
|
- |
