SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer (ser. Pre. 10-14)


04 - Door/drawer (ser. Pre. 15)


05 - Gas Controls


06 - Oven/base

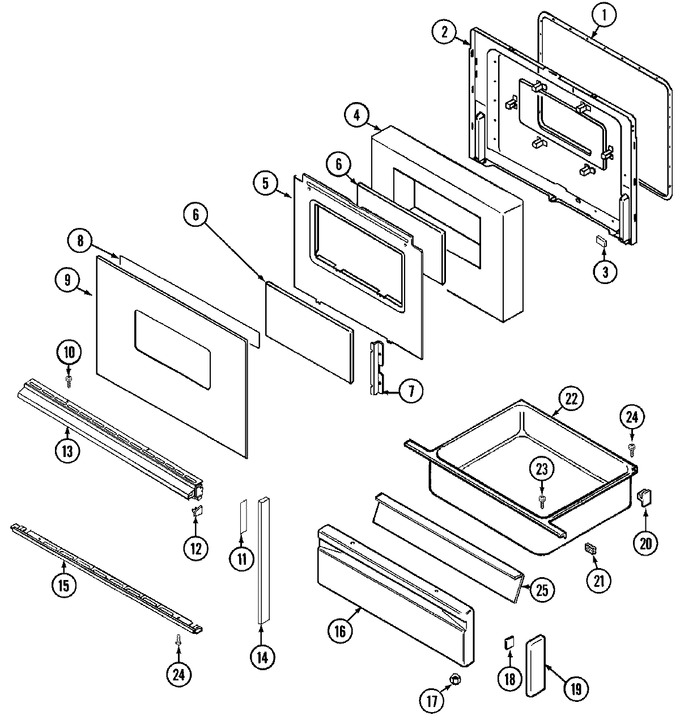

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	15		Immediately	$ 77.61
2	2402W209-19		Lining, Door	15	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	15	Appelez-nous	-
4	74001842		Insulation, Door	15	Appelez-nous	-
5	74001843		Baffle, Door	15	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	15		Immediately	$ 12.62
6	74001841		Glass, Inner	15	Appelez-nous	-
7	74001844		Retainer, Glass	15	Appelez-nous	-
8	8270P090-60		Tape, Foil (3`` Wide)	15	Appelez-nous	-
9	7902P321-60		Glass, Door (blk)	15	Appelez-nous	-
10	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	15			$ 15.94
11	8270P048-60		Tape, Sealing Roll	15	Appelez-nous	-
12	74002540		End Cap, Handle (lt-blk)	25	Appelez-nous	-
12	7744P075-60		End Cap (rt)	15	Appelez-nous	-
12	7744P076-60		End Cap (lt)	15	Appelez-nous	-
12	74002539		End Cap, Handle (rt-blk)	25	Appelez-nous	-
13	7701P103-60		Handle, Door (blk)	15	Appelez-nous	-
14	74002084		End Cap, Door (blk)	25	Appelez-nous	-
14	7744P055-60		End Cap, Oven Door (blk)	15	Appelez-nous	-
15	7744P105-60		Trim, Bottom (blk)----na	15	Appelez-nous	-
16	2416F038-65		Panel, Drawer (blk)	15	Appelez-nous	-
17	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	15			$ 4.00
18	8270P098-60		Tape	15			$ 5.02
19	7744P055-60		End Cap, Oven Door (blk)	15	Appelez-nous	-
20	8004P026-60		Support, Drawer (rear)	15			$ 9.29
21	7208P002-60		Seal	15	Appelez-nous	-
22	3405F018-80		Drawer, Storage	15	Appelez-nous	-
23	WP4159193		Screw   (Replaces: 7101P115-60)	15			$ 4.29
24	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	15		Immediately	$ 12.62
25	2404F030-51		Lining, Drawer Panel	15	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
