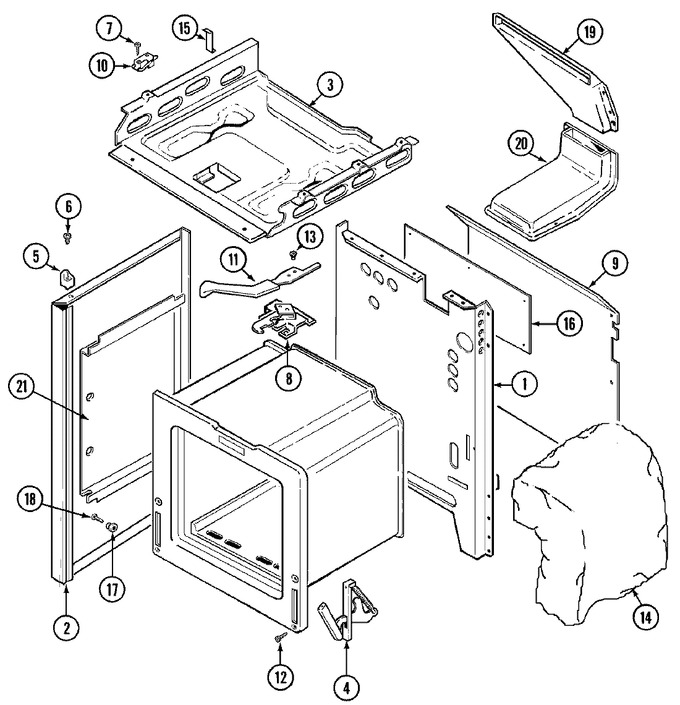

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F211-80 | Back, Main | 32 |
|
- | ||||
| 2 | 8270P078-60 | Tape, Foil (29 1/2``) | 32 |
|
- | ||||
| 2 | 74001907 | Panel, Side (blk) | 32 |
|
- | ||||
| 3 | 74002685 | Box, Burner | 32 |
|
- | ||||
| 4 | 7106P057-60 | Hinge | 32 |
|
- | ||||
| 4 | WP74011141 | Hinge, Door (Replaces: 74003249) | 41 |
|
Immediately | $ 128.06 | |||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 32 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 32 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 32 |
|
- | ||||
| 7 | 7101P330-60 | Screw, Switch | 32 |
|
- | ||||
| 8 | 74001084 | Insulation, Door Latch | 32 |
|
- | ||||
| 8 | 74001069 | Latch, Door | 32 |
|
- | ||||
| 9 | 4005F331-51 | Cover, Main Back Wire | 32 |
|
- | ||||
| 10 | 3801F267-45 | Bracket, Switch | 32 |
|
- | ||||
| 10 | 7003P063-60 | Insulator, Door Lock Switch | 32 |
|
- | ||||
| 10 | 7403P361-60 | Switch, Door Latch | 32 |
|
- | ||||
| 11 | 74001075 | Lever, Latch (blk) | 32 |
|
- | ||||
| 12 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 32 |
|
$ 4.29 | ||||
| 13 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 32 |
|
$ 4.29 | ||||
| 14 | 74001800 | Insulation, Back | 32 |
|
- | ||||
| 14 | 4804F036-60 | Insulation, Wrap | 32 |
|
- | ||||
| 15 | 3807F431-45 | Support, Main Top | 32 |
|
- | ||||
| 16 | 3604F165-51 | Shield, Flue (lower) | 32 |
|
- | ||||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 32 |
|
$ 7.07 | ||||
| 18 | 7101P103-60 | Screw | 32 |
|
- | ||||
| 19 | 4022W007-19 | Extension, Flue Box | 32 |
|
- | ||||
| 20 | 74002367 | Box, Vent | 32 |
|
- | ||||
| 21 | 74002599 | Retainer, Insulation (side) | 32 |
|
- |
