SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

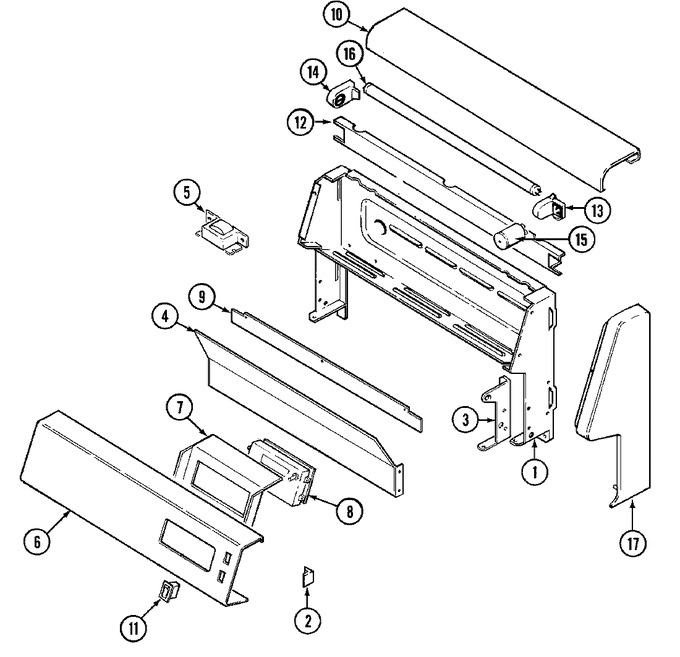

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F448-45 | Cover, Wire | 32 |
|
- | ||||
| 1 | 74002162 | Housing, Control Panel | 32 |
|
- | ||||
| 2 | 8010P083-60 | Spacer | 32 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 32 |
|
$ 6.98 | ||||
| 3 | 3807F453-51 | Support, Main Top (rt) | 32 |
|
- | ||||
| 3 | 3807F454-51 | Support, Main Top (lt) | 32 |
|
- | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 4 | 3604F188-09 | Shield, Flue | 32 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 5 | 7412P007-60 | Ballast | 32 |
|
- | ||||
| 6 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 32 |
|
Immediately | $ 6.47 | |||
| 6 | 74001065 | Panel, Control | 32 |
|
- | ||||
| 7 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 32 |
|
Immediately | $ 6.47 | |||
| 7 | 74002099 | Bracket, Clock | 32 |
|
- | ||||
| 8 | 74001085 | Clock Kit | 32 |
|
- | ||||
| 9 | 8036P003-60 | Shield, Sight | 32 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 10 | 74001066 | Cover, Ctl. Pnl. Light | 32 |
|
- | ||||
| 11 | 7403P200-60 | Switch, Rocker (wht) | 32 |
|
- | ||||
| 12 | 3807F406-71 | Holder, Lamp (wht) | 32 |
|
- | ||||
| 13 | 7408P029-60 | Receptacle, Light (rt) | 32 |
|
- | ||||
| 14 | 7408P030-60 | Receptacle, Snap-in (lt) | 32 |
|
- | ||||
| 14 | 7724P066-60 | Cover, Wire (light) | 32 |
|
- | ||||
| 15 | 7415P001-60 | Starter | 32 |
|
- | ||||
| 16 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 32 |
|
Immediately | $ 121.45 | |||
| 17 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 32 |
|
$ 7.68 | ||||
| 17 | 74002794 | End Cap, Panel (rt-blk) | 32 |
|
- | ||||
| 17 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 32 |
|
Immediately | $ 12.62 | |||
| 17 | 74002795 | End Cap, Panel (lt-blk) | 32 |
|
- | ||||
| 19 | 5180D151-60 | Harness, Control Panel | 32 |
|
- | ||||
| 19 | 5170P204-60 | Harness, Sensor & Lock | 32 |
|
- | ||||
| 19 | 5185D251-60 | Harness, Pedestal | 32 |
|
- | ||||
| 20 | 8113P066-60 | Manual, Use & Care | 32 |
|
- | ||||
| 21 | 16000329 | Guide, Quick Ref. - Magic Chef | 32 |
|
- |
