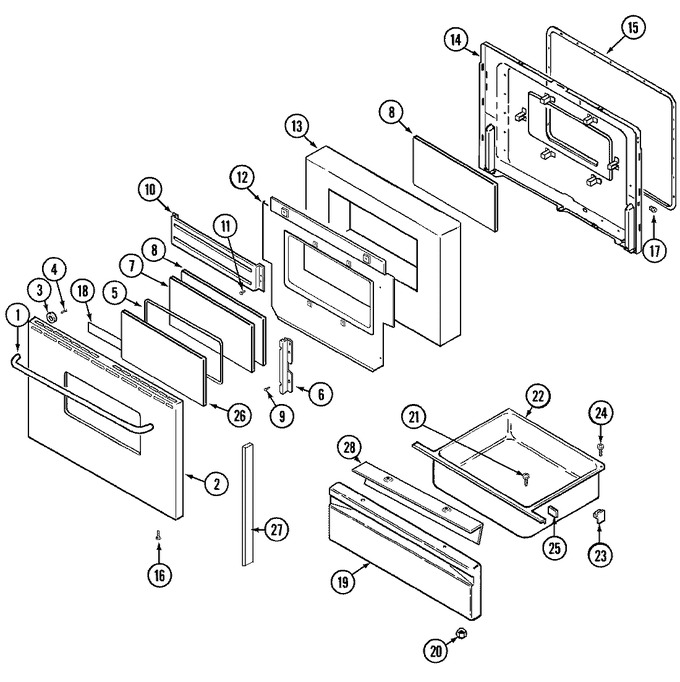

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001071 | Handle, Door | 32 |
|
- | ||||
| 2 | 74003047 | Panel, Oven Door | 32 |
|
- | ||||
| 2 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 32 |
|
$ 11.89 | ||||
| 3 | 7109P028-60 | Washer | 32 |
|
- | ||||
| 4 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 32 |
|
$ 6.77 | ||||
| 5 | 7201P017-60 | Gasket, Window | 32 |
|
$ 52.69 | ||||
| 6 | 74003048 | Retainer, Glass | 32 |
|
- | ||||
| 7 | 74002002 | Glass, Inner | 32 |
|
$ 62.17 | ||||
| 8 | 74001841 | Glass, Inner | 32 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 10 | 74003050 | Baffle, Oven Door Secondary | 32 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 12 | 74001843 | Baffle, Door | 32 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 13 | 74001842 | Insulation, Door | 32 |
|
- | ||||
| 14 | 74003244 | Lining, Door | 41 |
|
- | ||||
| 14 | 74001058 | Lining, Door | 32 |
|
- | ||||
| 15 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 32 |
|
Immediately | $ 77.61 | |||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 17 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 32 |
|
$ 9.89 | ||||
| 18 | 8270P078-60 | Tape, Foil (29 1/2``) | 32 |
|
- | ||||
| 19 | 74003312 | Panel, Drawer (chr) | 32 |
|
- | ||||
| 20 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 32 |
|
$ 4.00 | ||||
| 21 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 22 | 3405F019-80 | Drawer, Storage | 32 |
|
- | ||||
| 23 | 8004P026-60 | Support, Drawer (rear) | 32 |
|
$ 9.29 | ||||
| 24 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 32 |
|
Immediately | $ 12.62 | |||
| 25 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 32 |
|
$ 11.95 | ||||
| 26 | 74001072 | Glass, Outer Door (blk) | 32 |
|
- | ||||
| 27 | 74001074 | Nut,speed | 32 |
|
- | ||||
| 27 | 74001073 | Trim, Side | 32 |
|
- | ||||
| 28 | 2404F030-51 | Lining, Drawer Panel | 32 |
|
- |
