01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

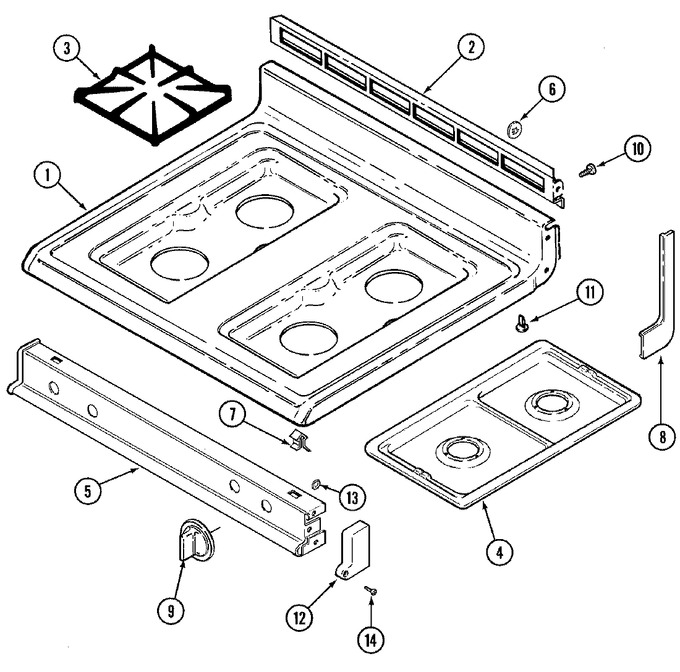

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002324 | Top, Main (stls) | 32 |
|
- | ||||
| 2 | 3608F042-09 | Trim, Vent (blk) | 32 |
|
- | ||||
| 3 | 74001076 | Grate (blk) | 32 |
|
- | ||||
| 4 | 5401A452-60 | Drip Bowl Kit (accessory) | 32 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 32 |
|
$ 3.66 | ||||
| 5 | 7712P234-60 | Panel, Manifold | 32 |
|
- | ||||
| 6 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 32 |
|
$ 7.68 | ||||
| 7 | 7112P087-60 | Clip, Top Locking | 32 |
|
- | ||||
| 8 | 7746P031-60 | End Cap (lt-blk) | 32 |
|
$ 26.25 | ||||
| 8 | 7746P030-60 | End Cap (rt-blk) | 32 |
|
$ 26.16 | ||||
| 9 | 74001077 | Knob, Burner | 32 |
|
- | ||||
| 10 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 32 |
|
$ 11.92 | ||||
| 11 | 8016P015-60 | Glide | 32 |
|
$ 5.65 | ||||
| 12 | 74001067 | End Cap (rt-chr) | 32 |
|
- | ||||
| 12 | 74001068 | End Cap (lt-chr) | 32 |
|
- | ||||
| 13 | WP3195558 | Nut, Push On (Replaces: 74002563) | 32 |
|
$ 7.68 | ||||
| 14 | WP74004005 | Screw (Replaces: 7118P013-60) | 32 |
|
$ 6.95 |
